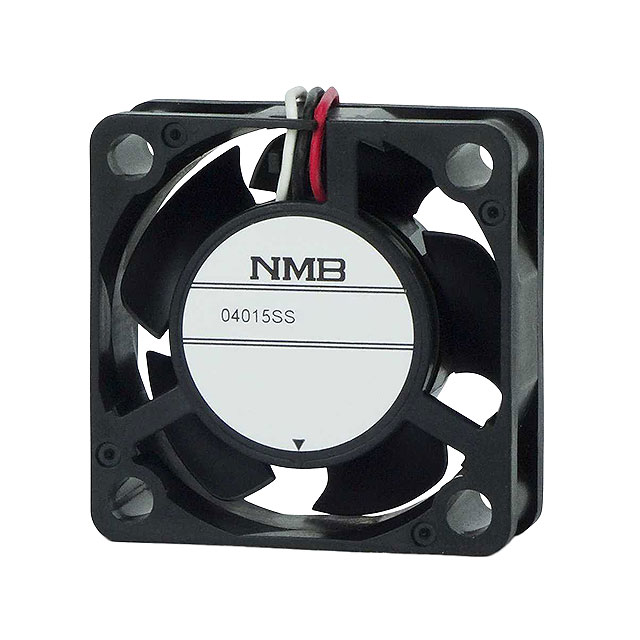

04015SS Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 15 MM, SLEEVE BEARING, 5.7 CFM

Part	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Material - Blade	Lifetime	Material - Frame	Air Flow	Voltage - Rated	RPM	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Features	Fan Type	Termination Leads Count	Termination Type	Termination	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Width	Bearing Type	Noise	Static Pressure	Weight
NMB TECHNOLOGIES 04015SS-24L-AL-00	27.6 VDC	10 VDC	0.25 A	Plastic	40000 Hrs	Plastic	5.7 CFM	24 VAC	6300 RPM	600 mW	158 °F	14 °F	Auto Restart Locked Rotor Sensor	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	26 dB	0.16 in H2O

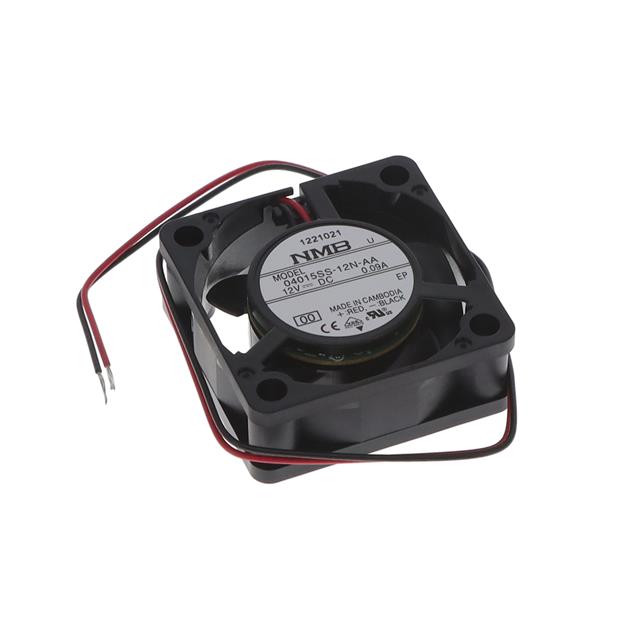

NMB TECHNOLOGIES 04015SS-12N-AA-00	13.8 VDC	6 VDC	60 mA	Plastic	40000 Hrs	Aluminum	7.4 CFM	12 VAC	8300 RPM	720 mW	158 °F	14 °F	Auto Restart	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	32 dB	0.27 in H2O
NMB TECHNOLOGIES 04015SS-12L-AT-00	13.8 VDC	6 VDC	40 mA	Plastic	40000 Hrs	Aluminum	5.7 CFM	12 VAC	6300 RPM	0.48 W	158 °F	14 °F	Auto Restart Speed Sensor (Tach)	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	26 dB	0.16 in H2O
NMB TECHNOLOGIES 04015SS-24L-AT-00	27.6 VDC	10 VDC	30 mA	Plastic	40000 Hrs	Aluminum	5.7 CFM	24 VAC	6300 RPM	600 mW	158 °F	14 °F	Auto Restart Speed Sensor (Tach)	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	26 dB	0.16 in H2O
NMB TECHNOLOGIES 04015SS-12N-AL-00	13.8 VDC	6 VDC	60 mA	Plastic	40000 Hrs	Aluminum	7.4 CFM	12 VAC	8300 RPM	720 mW	158 °F	14 °F	Auto Restart Locked Rotor Sensor	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	32 dB	0.27 in H2O
NMB TECHNOLOGIES 04015SS-24M-AT-00	25.2 VDC	10 VDC	40 mA	Plastic	40000 Hrs	Aluminum	6.4 CFM	24 VAC	7300 RPM	960 mW	158 °F	14 °F	Auto Restart Speed Sensor (Tach)	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	29 dB	0.21 in H2O
NMB TECHNOLOGIES 04015SS-12N-AT-00	13.8 VDC	6 VDC	60 mA	Plastic		Plastic	7.4 CFM	12 VAC	8300 RPM	720 mW	140 °F	14 °F	Speed Sensor (Tach)	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	32 dB	0.27 in H2O	0.051 lb
NMB TECHNOLOGIES 04015SS-12M-AT-00	13.8 VDC	6 VDC	50 mA	Plastic	40000 Hrs	Aluminum	6.4 CFM	12 VAC	7300 RPM	600 mW	158 °F	14 °F	Auto Restart Speed Sensor (Tach)	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	29 dB	0.21 in H2O
NMB TECHNOLOGIES 04015SS-12L-AL-00	13.8 VDC	6 VDC	40 mA	Plastic	40000 Hrs	Plastic	5.7 CFM	12 VAC	6300 RPM	0.48 W	158 °F	14 °F	Auto Restart Locked Rotor Sensor	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	26 dB	0.16 in H2O
NMB TECHNOLOGIES 04015SS-12M-AL-00	13.8 VDC	6 VDC	50 mA	Plastic	40000 Hrs	Plastic	6.4 CFM	12 VAC	7300 RPM	600 mW	158 °F	14 °F	Auto Restart Locked Rotor Sensor	Tubeaxial	3	Wire Leads	3 Wire Leads	40 mm	Square	40 mm	15 mm	Sleeve	29 dB	0.21 in H2O
