AM15E Series

Manufacturer: aimtec

Catalog

MODULE DC-DC 12VIN 1-OUT 5V 3A 15W 4-PIN BULK

Part	Approval Agency	Size / Dimension	Power (Watts)	Current - Output (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Voltage - Isolation	Standard Number	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Package / Case	Current - Output (Max)	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Output 2	Efficiency	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
aimtec AM15E-1205SZ	CE cULus cURus EN IEC UL	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W	3 A	Isolated Module	85 °C	-40 C	Through Hole	1	1.5 kV	62368-1	9 V	5 V	18 V	ITE (Commercial)	5-DIP Module 4 Leads
aimtec AM15E-1212DZ	CE cULus cURus EN IEC UL	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W		Isolated Module	85 °C	-40 C	Through Hole	2	1.5 kV	62368-1	9 V		18 V	ITE (Commercial)		0.62 A	-12 V	12 V	-12 V	84 %
aimtec AM15E-1218DZ	CE cULus cURus EN IEC UL	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W		Isolated Module	85 °C	-40 C	Through Hole	2	1.5 kV	62368-1	9 V		18 V	ITE (Commercial)		400 mA			-18 V	85 %	18 V	-18 V
aimtec AM15E-2415DZ	CE cURus	0.4 in 10.2 mm 25.4 mm 50.8 mm	15 W		Isolated Module	85 °C	-40 °C	Through Hole	2	1.5 kV		18 V	15 V	36 V	ITE (Commercial)	5-DIP Module	500 mA			-15 V	86 %
aimtec AM15EW-11015SH22-NZ	CE cURus		15 W	1 A	Isolated Module	85 °C	-40 °C	Through Hole	1	2250 VDC		40 V	15 V	160 V	ITE (Commercial)	6-DIP Module					85 %			2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm
aimtec AM15EW-11024SH22-NZ	CE cURus		15 W	625 mA	Isolated Module	85 °C	-40 °C	Through Hole	1	2250 VDC		40 V	24 V	160 V	ITE (Commercial)	6-DIP Module					85 %			2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm
aimtec AM15EW-11012SH22-NZ	CE cURus		15 W	1.25 A	Isolated Module	85 °C	-40 °C	Through Hole	1	2250 VDC		40 V	12 V	160 V	ITE (Commercial)	6-DIP Module					84 %			2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm
aimtec AM15E-4815S-NZ	CE cURus		15 W	1 A	Isolated Module	85 °C	-40 °C	Through Hole	1	1.5 kV		36 V	15 V	75 V	ITE (Commercial)	6-DIP Module					89 %			2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm
aimtec AM15EW-11005SH22-NZ	CE cURus		15 W	3 A	Isolated Module	85 °C	-40 °C	Through Hole	1	2250 VDC		40 V	5 V	160 V	ITE (Commercial)	6-DIP Module					84 %			2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm

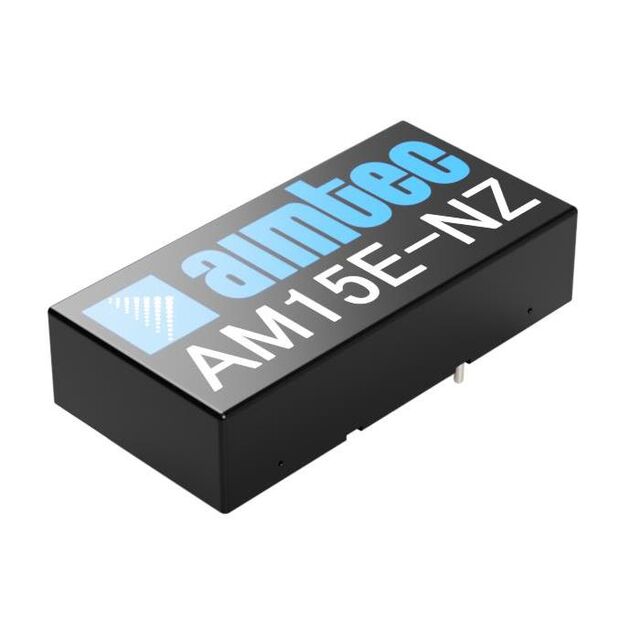

aimtec AM15E-2405S-NZ	CE cURus		15 W	3 A	Isolated Module	85 °C	-40 °C	Through Hole	1	1.5 kV		18 V	5 V	36 V	ITE (Commercial)	6-DIP Module					89 %			2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm
