BXRC-35 Series
Manufacturer: BRIDGELUX
Beta
⌘K

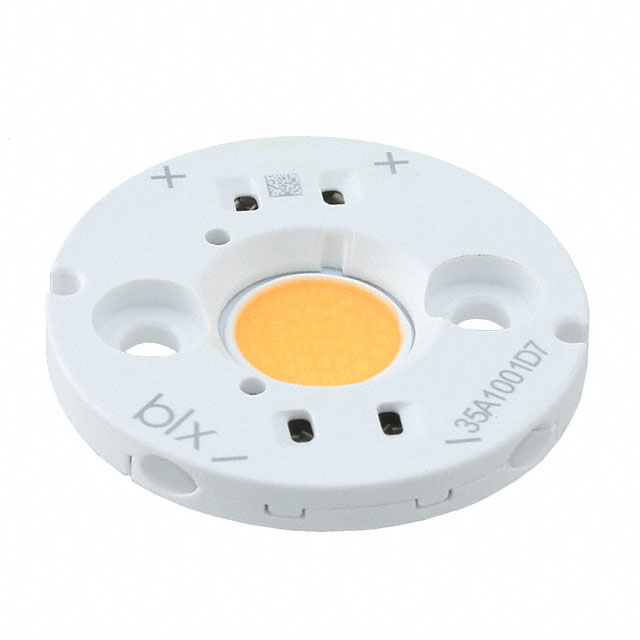

LED COB VERO WM WH STARBRD 3500K
| Part | Lumens/Watt @ Current - Test | Current - Max [Max] | Luminous Flux @ Current/Temperature | CRI (Color Rendering Index) | CCT (K) | CCT (K) | Light Emitting Surface (LES) [diameter] | Size / Dimension [diameter] | Lens Type | Features | Temperature - Test | Color | Voltage - Forward (Vf) (Typ) | Configuration | Height [z] | Current - Test | Type | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 133 lm/W | 700 mA | 1209 lm | 90 | 3500 K | 3-Step MacAdam Ellipse | 9.9 mm | 20 mm | Flat | With Connector | 25 °C | Warm White | 26 V | Starboard | 1.9 mm | 350 mA | Chip On Board (COB) | 120 ° |
 BRIDGELUX | 145 lm/W | 2.1 A | 4303 lm | 80 | 3500 K | 3-Step MacAdam Ellipse | 18.4 mm | 36.2 mm | Flat | 85 °C | Warm White | 28.3 V | Round | 3.6 mm | 1.05 A | Chip On Board (COB) | 120 ° | |
 BRIDGELUX | 127 lm/W | 2.1 A | 3920 lm | 80 | 3500 K | 3-Step MacAdam Ellipse | 18.4 mm | 36.2 mm | Flat | With Connector | 25 °C | Warm White | 29.5 V | Round | 1.9 mm | 1.05 A | Chip On Board (COB) | 120 ° |
 BRIDGELUX | 112 lm/W | 700 mA | 996 lm | 93 | 3500 K | 3-Step MacAdam Ellipse | 9.9 mm | 30.8 mm | Flat | 85 °C | Warm White | 25.3 V | Round | 3.6 mm | 350 mA | Chip On Board (COB) | 120 ° | |
 BRIDGELUX | 143 lm/W | 4.2 A | 11399 lm | 80 | 3500 K | 3-Step MacAdam Ellipse | 29.2 mm | 49.2 mm | Flat | With Connector | 25 °C | Warm White | 38 V | Round | 1.9 mm | 2.1 A | Chip On Board (COB) | 120 ° |
 BRIDGELUX | 122 lm/W 127 lm/W | 1.8 A | 3744 lm 3861 lm | 90 | 3500 K | 3-Step MacAdam Ellipse | 18.4 mm | 36.2 mm | Flat | With Connector | 85 °C | Warm White | 33.9 V 34.1 V | Round | 1.9 mm | 900 mA | Chip On Board (COB) | |
BRIDGELUX | 138 lm/W | 2.1 A | 4289 lm | 80 | 3500 K | 3-Step MacAdam Ellipse | 18.4 mm | 36.2 mm | Flat | With Connector | 25 °C | Warm White | 29.5 V | Round | 1.9 mm | 1.05 A | Chip On Board (COB) | 120 ° |
 BRIDGELUX | 118 lm/W | 1.8 A | 3623 lm | 93 | 3500 K | 3-Step MacAdam Ellipse | 18.4 mm | 36.2 mm | Flat | With Connector | 85 °C | Warm White | 34.1 V | Round | 1.9 mm | 900 mA | Chip On Board (COB) | 120 ° |
 BRIDGELUX | 137 lm/W | 3.42 A | 16257 lm | 90 | 3500 K | 3-Step MacAdam Ellipse | 29.2 mm | 49.2 mm | Flat | 25 °C | Warm White | 69.4 V | Round | 1.9 mm | 1.71 A | Chip On Board (COB) | 120 ° | |
BRIDGELUX | 160 lm/W | 720 mA | 2000 lm | 80 | 3500 K | 9.9 mm | 20 mm | Flat | With Connector | 25 °C | Warm White | 34.8 V | Starboard | 1.9 mm | 360 mA | Chip On Board (COB) | 120 ° |
