C5889 Series

Catalog

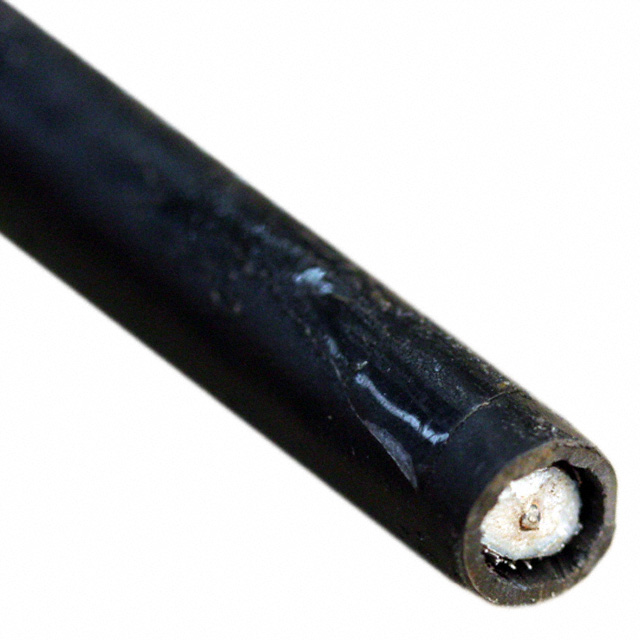

CABLE COAX RISER RG6 18AWG 100'

Part	Shield Material	Conductor Strand	Length	Length	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	VoP, Velocity of Propagation	Conductor Material	Cable Group	Shield Coverage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Wire Gauge	Wire Gauge	Features	Shield Type	Jacket Color	Impedance
Prysmian Group C5889.41.02	Aluminum Flexfoil®	Solid	7.62 m 30.48 m 76.2 m	25 ft 100 ' 250 ft	50 ft 1000 ft	15.24 m 304.8 m	7.42 mm	0.292 in	85	Copper Coated Steel	RG-6	40 % 60 % 100 %	0.177 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Coaxial - Riser	0.82 mm² 18 AWG	18 AWG	Quad Shield	Braid Foil	White	75 Ohms
Prysmian Group C5889.41.01	Aluminum Flexfoil®	Solid			1000 ft	304.8 m	7.42 mm	0.292 in	85	Copper Coated Steel	RG-6	40 % 60 % 100 %	0.177 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Coaxial - Riser	18 AWG		Quad Shield	Braid Foil	Black	75 Ohms
Prysmian Group C5889.31.01		Solid			1000 ft	304.8 m	7.42 mm	0.292 in			RG-6				Poly-Vinyl Chloride (PVC)	Coaxial - Riser	18 AWG		Quad Shield	Braid Foil	Black	75 Ohms
Prysmian Group C5889.41.02		Solid	7.62 m 30.48 m 76.2 m	25 ft 100 ' 250 ft	50 ft 1000 ft	15.24 m 304.8 m	7.42 mm	0.292 in			RG-6				Poly-Vinyl Chloride (PVC)	Coaxial - Riser	18 AWG		Quad Shield	Braid Foil	White	75 Ohms
Prysmian Group C5889.31.02		Solid			1000 ft	304.8 m	7.42 mm	0.292 in			RG-6				Poly-Vinyl Chloride (PVC)	Coaxial - Riser	18 AWG		Quad Shield	Braid Foil	White	75 Ohms
Prysmian Group C5889.41.01		Solid	30.48 m	100 '	50 ft 1000 ft	15.24 m 304.8 m	7.42 mm	0.292 in			RG-6				Poly-Vinyl Chloride (PVC)	Coaxial - Riser	18 AWG		Quad Shield	Braid Foil	Black	75 Ohms
Prysmian Group C5889.31.01	Aluminum Flexfoil®	Solid	30.48 m	100 '	50 ft 1000 ft	15.24 m 304.8 m	7.42 mm	0.292 in	85	Copper Coated Steel	RG-6	40 % 60 % 100 %	0.177 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Coaxial - Riser	0.82 mm² 18 AWG	18 AWG	Quad Shield	Braid Foil	Black	75 Ohms
Prysmian Group C5889.31.02	Aluminum Flexfoil®	Solid			1000 ft	304.8 m	7.42 mm	0.292 in	85	Copper Coated Steel	RG-6	40 % 60 % 100 %	0.177 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Coaxial - Riser	18 AWG		Quad Shield	Braid Foil	White	75 Ohms
