08-2810 Series
Manufacturer: Aries Electronics
Beta
⌘K

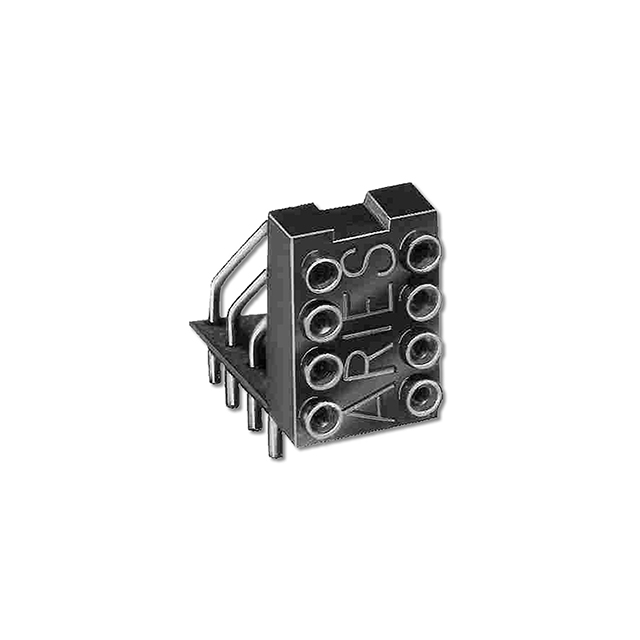

CONN IC DIP SOCKET 8POS GOLD
| Part | Material Flammability Rating | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Finish - Mating | Termination | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Type | Type | Features | Housing Material | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post [custom] | Contact Material - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | UL94 V-0 | 3.56 mm | 0.14 in | 3 A | Gold | Solder | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | Beryllium Copper | 0.1 " | 2.54 mm | Tin | 8 | 2 | 4 | DIP | 5.08 mm | Closed Frame | Polyamide (PA46) Nylon 4/6 Glass Filled | Right Angle Through Hole Vertical | 200 µin | 5.08 µm | Brass | |
 Aries Electronics | UL94 V-0 | 3.68 mm | 0.145 in | 1.5 A | Solder | 0.1 in | 2.54 mm | 5.08 µm | 200 µin | Phosphor Bronze | 0.1 " | 2.54 mm | Tin | 8 | 2 | 4 | DIP | 5.08 mm | Closed Frame | Polyamide (PA46) Nylon 4/6 | Right Angle Through Hole Vertical | 200 µin | 5.08 µm | Phosphor Bronze | ||
Aries Electronics | UL94 V-0 | 3.68 mm | 0.145 in | 1.5 A | Gold | Solder | 0.1 in | 2.54 mm | 0.25 µm | 10 µin | Phosphor Bronze | 0.1 " | 2.54 mm | Gold | 8 | 2 | 4 | DIP | 5.08 mm | Closed Frame | Polyamide (PA46) Nylon 4/6 | Right Angle Through Hole Vertical | 10 Áin | 0.25 çm | Phosphor Bronze |
