HR10G Series

Catalog

CONN RCPT FMALE 12P SOLDER CUP

Part	Number of Positions	Fastening Type	Voltage Rating	Color	Insert Material [custom]	Insert Material [custom]	Contact Material	Primary Material	Shell Material	Connector Type	Contact Finish - Mating	Shell Size - Insert [custom]	Material Flammability Rating	Current Rating (Amps)	Mounting Feature	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Orientation	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Termination	Insert Material	Backshell Material, Plating	Features	Type	Housing Color	Contact Shape	Contact Type	Contact Size	Note

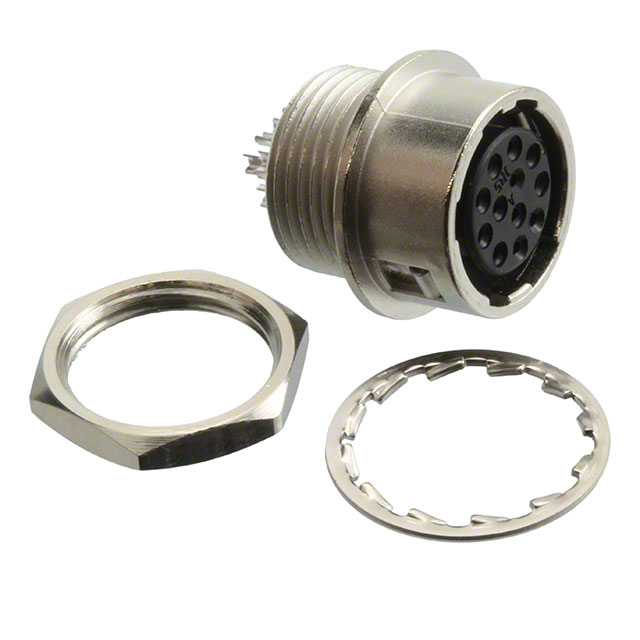

Hirose Electric Co Ltd HR10G-10R-12S(71)	12	Push-Pull	100 VAC 140 VDC	Silver	Nylon	Polyamide (PA)	Phosphor Bronze	Metal	Zinc Alloy	Receptacle Female Sockets	Silver	10	UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	78.7 µin	2 µm	Panel Mount	Keyed	Nickel	85 °C	-25 °C
Hirose Electric Co Ltd HR10G-7R-4S(74)	4	Push-Pull	150 VAC 200 V	Silver	Nylon	Polyamide (PA)	Phosphor Bronze	Metal	Zinc Alloy	Receptacle Female Sockets	Gold		UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	8 µin	0.203 µm	Panel Mount	Keyed	Nickel	85 °C	-25 °C	7
Hirose Electric Co Ltd HR10G-7R-6SB(74)	6	Push-Pull	100 VAC 140 VDC	Silver			Phosphor Bronze	Metal	Zinc Alloy	Receptacle Female Sockets	Gold		UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	8 µin	0.203 µm	Panel Mount Through Hole	Keyed	Nickel	85 °C	-25 °C	7	Solder	Polybutylene Terephthalate (PBT)
Hirose Electric Co Ltd HR10G-7R-6P(73)	6	Push-Pull	100 VAC 140 VDC	Silver	Nylon	Polyamide (PA)	Brass	Metal	Zinc Alloy	Receptacle Male Pins	Silver		UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	78.7 µin	2 µm	Panel Mount	Keyed	Nickel	85 °C	-25 °C	7

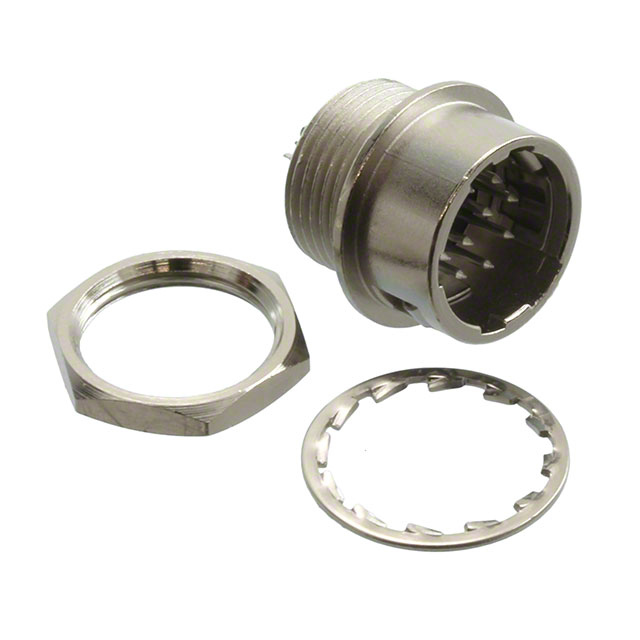

Hirose Electric Co Ltd HR10G-10R-10P(73)	10	Push-Pull	100 VAC 140 VDC	Silver	Nylon	Polyamide (PA)	Brass	Metal	Zinc Alloy	Receptacle Male Pins	Silver	10	UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	78.7 µin	2 µm	Panel Mount	Keyed	Nickel	85 °C	-25 °C

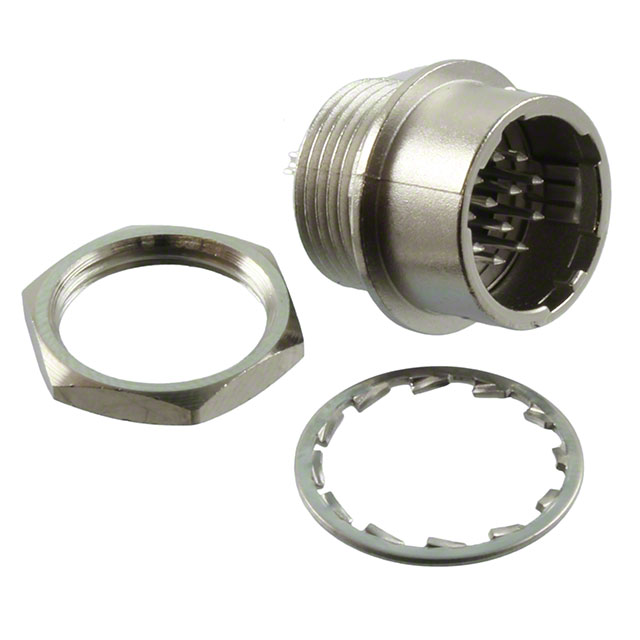

Hirose Electric Co Ltd HR10G-10R-12P(73)	12	Push-Pull	100 VAC 140 VDC	Silver	Nylon	Polyamide (PA)	Brass	Metal	Zinc Alloy	Receptacle Male Pins	Silver	10	UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	78.7 µin	2 µm	Panel Mount	Keyed	Nickel	85 °C	-25 °C
Hirose Electric Co Ltd HR10G-10R-12P(74)	12	Push-Pull	100 VAC 140 VDC	Silver	Nylon	Polyamide (PA)	Brass	Metal	Zinc Alloy	Receptacle Male Pins	Gold	10	UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	8 µin	0.203 µm	Panel Mount	Keyed	Nickel	85 °C	-25 °C
Hirose Electric Co Ltd HR10G-7J-4P(74)	4	Push-Pull	150 VAC 200 V	Silver	Nylon	Polyamide (PA)	Brass	Metal	Zinc Alloy	Jack Male Pins	Gold		UL94 V-0	2 A		Shielded	8 µin	0.203 µm	Free Hanging (In-Line)	Keyed	Nickel	85 °C	-25 °C	7			Brass Nickel	Backshell Clamp Strain Relief
Hirose Electric Co Ltd HR10G-7R-4PC(73)	4	Push-Pull							Zinc Alloy	Receptacle Housing			UL94 V-0		Bulkhead - Rear Side Nut	Shielded			Panel Mount	Keyed	Nickel	85 °C	-20 ░C	7		Polybutylene Terephthalate (PBT)			For Male Pins	Silver	Circular	Crimp	1 mm	Contacts Not Included

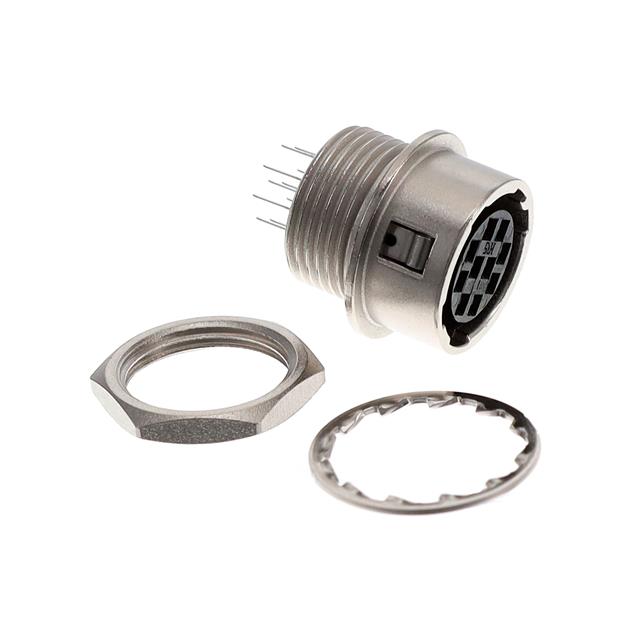

Hirose Electric Co Ltd HR10G-10R-10SB(71)	10	Push-Pull	100 VAC 140 VDC	Silver			Phosphor Bronze	Metal	Zinc Alloy	Receptacle Female Sockets	Silver	10	UL94 V-0	2 A	Bulkhead - Rear Side Nut	Shielded	78.7 µin	2 µm	Panel Mount Through Hole	Keyed	Nickel	85 °C	-25 °C		Solder	Polybutylene Terephthalate (PBT)
