08-6810 Series

Catalog

CONN IC DIP SOCKET 8POS GOLD

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Termination	Contact Finish - Post	Pitch - Post	Pitch - Post	Contact Material - Mating	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]	Type	Contact Finish - Mating	Mounting Type

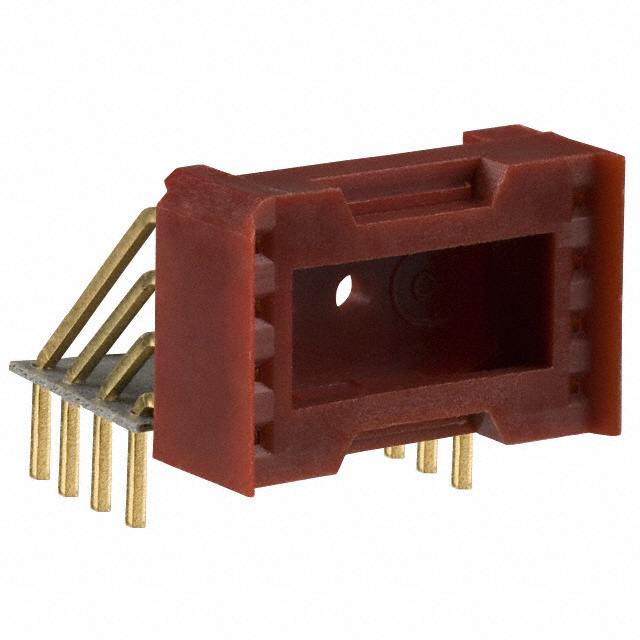

Aries Electronics 08-6810-90	0.145 in	3.68 mm	UL94 V-0	1.5 A	Solder	Gold	0.1 in	2.54 mm	Phosphor Bronze	Phosphor Bronze	10 Áin	0.25 çm	Closed Frame	0.25 µm	10 µin	Polyamide (PA46) Nylon 4/6	0.1 "	2.54 mm	8	2	4	15.24 mm	0.6 in	DIP	Gold	Right Angle Through Hole Vertical
Aries Electronics 08-6810-90T	0.145 in	3.68 mm	UL94 V-0	1.5 A	Solder	Tin	0.1 in	2.54 mm	Phosphor Bronze	Phosphor Bronze	200 µin	5.08 µm	Closed Frame	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	0.1 "	2.54 mm	8	2	4	15.24 mm	0.6 in	DIP		Right Angle Through Hole Vertical
