01344 Series

Catalog

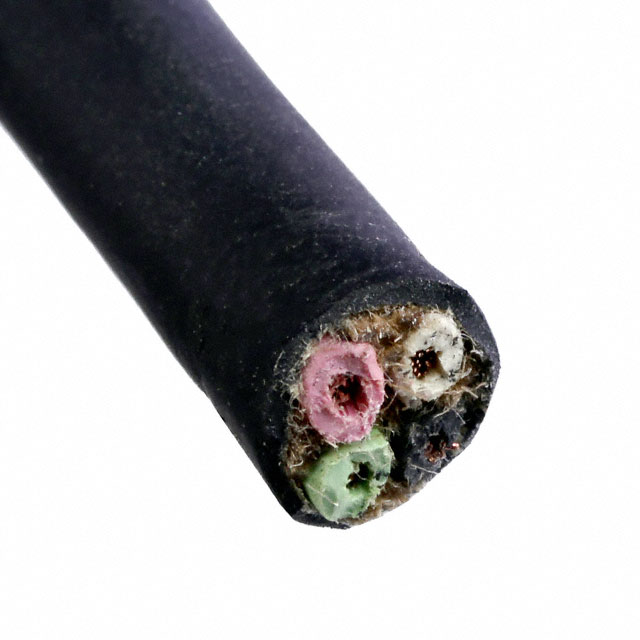

CABLE 4COND 18AWG BLACK 250'

Part	Voltage	Number of Conductors	Conductor Material	Jacket Color	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Prysmian Group 01344.15.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	76.2 m	250 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.38T.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	152.4 m	500 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.35T.01	300 VDC	4	Copper Annealed Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	76.2 m	250 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.46.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm			Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.46.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm			Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.44.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	762 m	2500 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.41.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	304.8 m	1000 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.41.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	304.8 m	1000 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.44.01	300 VDC	4	Copper Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	762 m	2500 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
Prysmian Group 01344.35.01	300 VDC	4	Copper Annealed Bare	Black	18 AWG	90 °C	-40 C	16	30 AWG	Carolprene	Multi-Conductor	0.33 in	8.38 mm	76.2 m	250 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	0.03 in	0.762 mm
