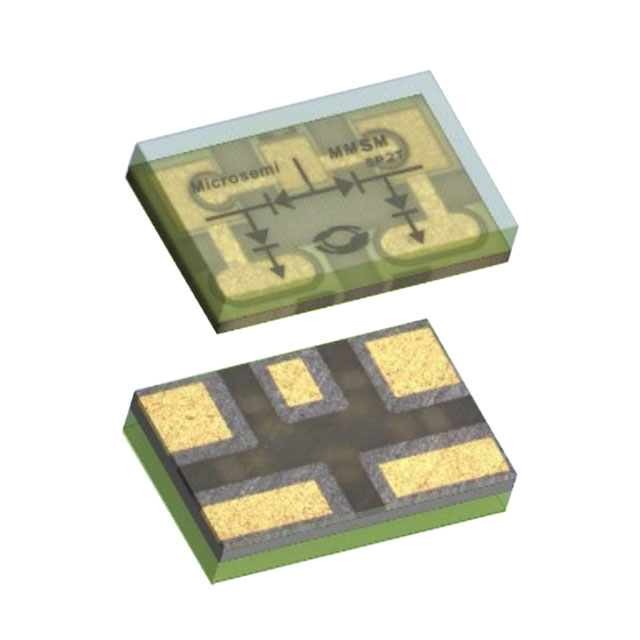

MMSM-Surface-Mount-SP2T-Switch
Key Features
• * Series-shunt PIN Diode SP2T
• * 100 W CW Power Handling
• * Low Insertion loss
• * High isolation
• * Surface mount
• * 0805 device size
• * Stable low leakage passivation with rugged glass body
• * RoHS Compliant
Description
AI
The MPS2R11-608 is a medium-power monolithic microwave surface mount (MMSM) series-shunt pin diode SP2T reflective switch. The technology is a packaged/device integration accomplished at the wafer level. Thermal transfer is optimized by elimination of the traditional package interface. The MPS2R11-608 is completely compatible with pick-and-place and solder-reflow manufacturing techniques. This series of diodes meets RoHS requirements according to EU Directive 2002/95/EC.
