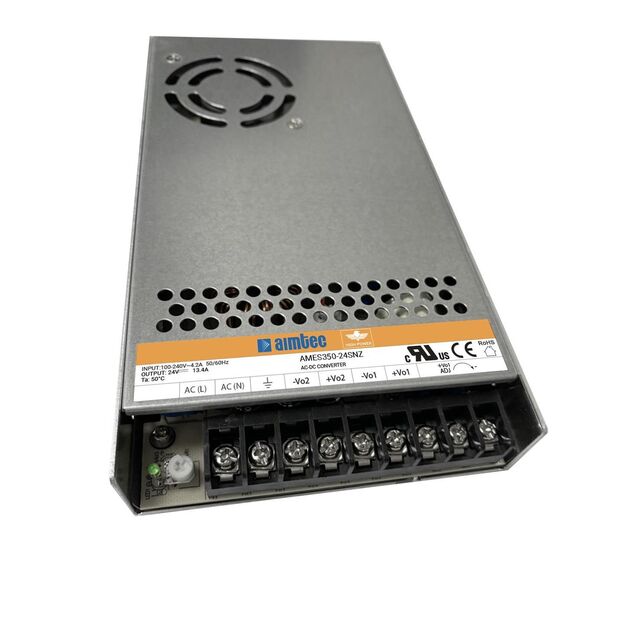

AMES350 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 24V 350W

Part	Efficiency	Voltage - Output 1	Approval Agency	Voltage - Isolation	Power (Watts)	Standard Number	Features	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Current - Output 1	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1 [custom]	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]
aimtec AMES350-24SNZ-P	87 % 88 %	24 V	CB CE EN IEC UL	3000 V 4000 V	350 W 350.4 W	60335-1 61558-1 62368-1	Adjustable Output DC Input Capable Universal Input	90 VAC 180 VAC 240 VDC	132 VAC 264 VAC 370 VDC 373 VDC	Household Appliances ITE (Commercial)	14.6 A	Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1	28.8 V	21.6 V	-30 °C	70 °C
aimtec AMES350-36SNZ-Q	88 %		CB CE EN IEC UL	3000 V	349 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	9.7 A	Conformal Coated Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C	36 V
aimtec AMES350-48SNZ	88.5 %	48 V	CB CE EN IEC UL	3000 V	350 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	7.3 A	Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C
aimtec AMES350-12SNZ-Q	85 %	12 V	CB CE EN IEC UL	3000 V	348 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	29 A	Conformal Coated Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C
aimtec AMES350-48SNZ-P	88.5 % 89 %	48 V	CB CE EN IEC UL	3000 V 4000 V	350 W 350.4 W	60335-1 61558-1 62368-1	Adjustable Output DC Input Capable Universal Input	90 VAC 180 VAC 240 VDC	132 VAC 264 VAC 370 VDC 373 VDC	Household Appliances ITE (Commercial)	7.3 A	Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C		52.8 V	43.2 V
aimtec AMES350-12SNZ	85 %	12 V	CB CE EN IEC UL	3000 V	348 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	29 A	Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C
aimtec AMES350-48SNZ-Q	88.5 %	48 V	CB CE EN IEC UL	3000 V	350 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	7.3 A	Conformal Coated Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C
aimtec AMES350-24SNZ	87 %	24 V	CB CE EN IEC UL	3000 V	350 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	14.6 A	Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C
aimtec AMES350-36SNZ	88 %		CB CE EN IEC UL	3000 V	349 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	9.7 A	Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C	36 V
aimtec AMES350-24SNZ-Q	87 %	24 V	CB CE EN IEC UL	3000 V	350 W	60335-1 62368-1	Adjustable Output	90 VAC 240 VDC	264 VAC 373 VDC	Household Appliances ITE (Commercial)	14.6 A	Conformal Coated Enclosed	Chassis Mount	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	1			-30 °C	70 °C
