STPS3045 Series

45 V, 30 A PowerFLAT Power Schottky rectifier

Catalog

45 V, 30 A PowerFLAT Power Schottky rectifier

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Diode Configuration	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io) (per Diode)	Mounting Type	Technology	Operating Temperature - Junction [Max]	Speed	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Grade	Operating Temperature - Junction [Min]	Qualification
STMicroelectronics STPS3045CT	45 V	TO-220	1 Pair Common Cathode	200 µA	570 mV	15 A	Through Hole	Schottky	200 C	200 mA 500 ns	TO-220-3
STMicroelectronics STPS3045CR	45 V	TO-262 (I2PAK)	1 Pair Common Cathode	200 µA	570 mV	15 A	Through Hole	Schottky	200 C	200 mA 500 ns	I2PAK TO-262-3 Long Leads TO-262AA
STMicroelectronics STPS3045CG	45 V	D2PAK	1 Pair Common Cathode	200 µA	570 mV	15 A	Surface Mount	Schottky	200 C	200 mA 500 ns	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
STMicroelectronics STPS3045CPIRG	45 V	TOP-3I	1 Pair Common Cathode	200 µA	570 mV	15 A	Through Hole	Schottky	200 C	200 mA 500 ns

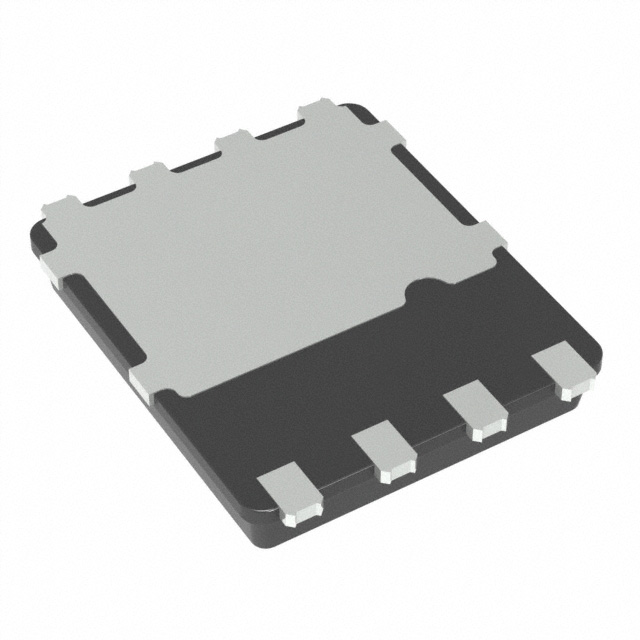

STMicroelectronics STPS3045DJF-TR	45 V	PowerFlat™ (5x6)		300 µA			Surface Mount	Schottky	150 °C	200 mA 500 ns	8-PowerVDFN	30 A	640 mV
STMicroelectronics STPS3045DJFY-TR	45 V	PowerFlat™ (5x6)		300 µA			Surface Mount Wettable Flank	Schottky	175 ░C	200 mA 500 ns	8-PowerVDFN	30 A	680 mV	Automotive	-40 °C	AEC-Q101
STMicroelectronics STPS3045CFP	45 V	TO-220FP	1 Pair Common Cathode	200 µA	570 mV	15 A	Through Hole	Schottky	200 C	200 mA 500 ns	TO-220-3 Full Pack
STMicroelectronics STPS3045FP	45 V	TO-220FPAC		300 µA			Through Hole	Schottky	175 ░C	200 mA 500 ns	TO-220-2 Full Pack	30 A	620 mV

Catalog

45 V, 30 A PowerFLAT Power Schottky rectifier

Description

Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT™ wettable flanks, this device is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection applications in automotive applications. Its low profile was especially designed to be used in applications with space-saving constraints.
