HIP2103 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
MOTOR DRIVER/CONTROLLER, THREE PHASE DC BRUSHLESS, 4.5V TO 14V SUPPLY, 75 MA/1 OUTPUT, TDFN-8
| Part | Package / Case | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Gate Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Logic Voltage - VIL, VIH | Number of Drivers | Channel Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Driven Configuration | Input Type | Mounting Type | Applications | Rds On (Typ) | Fault Protection | Load Type | Package / Case [y] | Package / Case [x] | Technology | Voltage - Load [Min] | Voltage - Load [Max] | Current - Peak Output | Current - Output / Channel | Contents | Function | Supplied Contents | Utilized IC / Part | Type | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 8-WDFN Exposed Pad | 1 A | 1 A | N-Channel MOSFET | 14 V | 4.5 V | 1.63 V 2.06 V | 2 | Independent | -40 °C | 125 ¯C | 8-TDFN (3x3) | Half-Bridge | Non-Inverting | Surface Mount | |||||||||||||||||
 Renesas Electronics Corporation | 8-SOIC | 14 V | 4.5 V | -40 °C | 150 °C | 8-SOIC | Surface Mount | DC Motors General Purpose | 2.3 Ohm 2.3 Ohm | Current Limiting Shoot Through UVLO | Capacitive Inductive Resistive | 3.9 mm | 0.154 in | NMOS | 4.5 V | 60 V | 2 A | 150 mA | ||||||||||||||

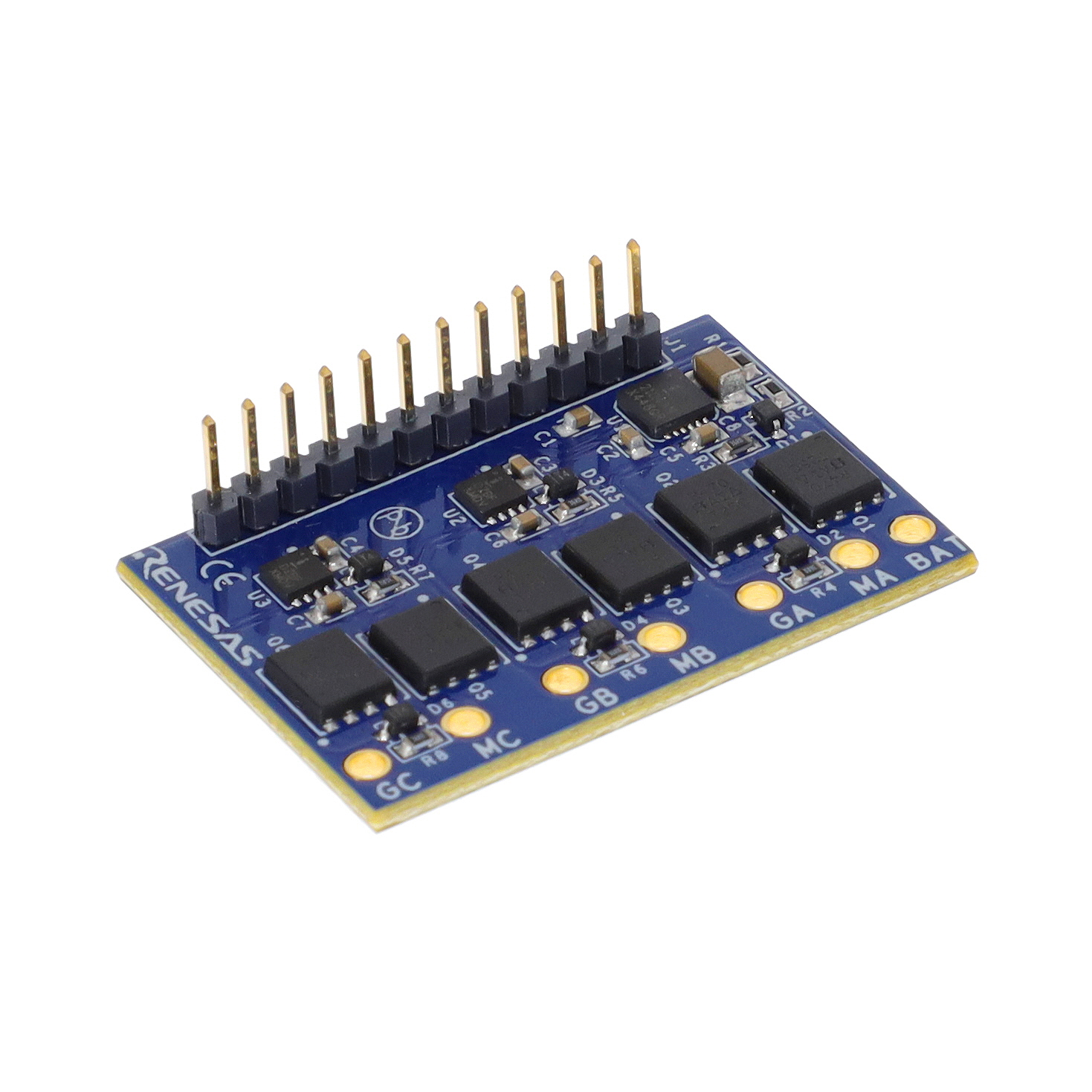

 Renesas Electronics Corporation | Board(s) | Motor Controller/Driver | Board(s) | HIP2103 HIP2104 | Power Management | On-Board LEDs | ||||||||||||||||||||||||||
Renesas Electronics Corporation | Board(s) | Half H-Bridge Driver (External FET) | Board(s) | HIP2103 | Power Management | |||||||||||||||||||||||||||
 Renesas Electronics Corporation | Motor Controller/Driver | Board(s) | HIP2103 HIP2104 | Power Management | On-Board LEDs |
