HK-R-SR2 Series
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
Manufacturer: Hirose Electric Co Ltd
Catalog
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
Beta
⌘K
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
RF Connectors / Coaxial Connectors 2.92 Conn Recpt Female Socket
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Impedance | Connector Style [x] | Features | Contact Termination | Housing Color | Center Contact Material | Mounting Feature | Fastening Type | Shield Termination | Frequency - Max [Max] | Connector Type | Mounting Type | Number of Ports | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gold | -55 C | 105 ░C | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Mounting Hardware | Compression | Gold | Beryllium Copper | Flange | Threaded | Screw | 40 GHz | Receptacle Female Socket | Surface Mount | 1 | |
 Hirose Electric Co Ltd | Gold | -55 C | 105 ░C | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Mounting Hardware | Compression | Gold | Beryllium Copper | Flange | Threaded | Screw | 40 GHz | Receptacle Female Socket | Surface Mount | 1 | |
 Hirose Electric Co Ltd | -55 C | 105 ░C | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Compression | Silver | Beryllium Copper | Flange | Threaded | Screw | 40 GHz | Receptacle Female Socket | Surface Mount | 1 | |||
 Hirose Electric Co Ltd | Nickel | -55 C | 105 ░C | Brass | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Mounting Hardware | Compression | Silver | Beryllium Copper | Flange | Threaded | Screw | 43.5 GHz | Receptacle Female Socket | Surface Mount | 1 | |
 Hirose Electric Co Ltd | |||||||||||||||||||||
 Hirose Electric Co Ltd | Gold | -55 C | 105 ░C | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Mounting Hardware | Compression | Gold | Beryllium Copper | Flange | Threaded | Screw | 40 GHz | Receptacle Female Socket | Surface Mount | 1 | |
Hirose Electric Co Ltd | |||||||||||||||||||||

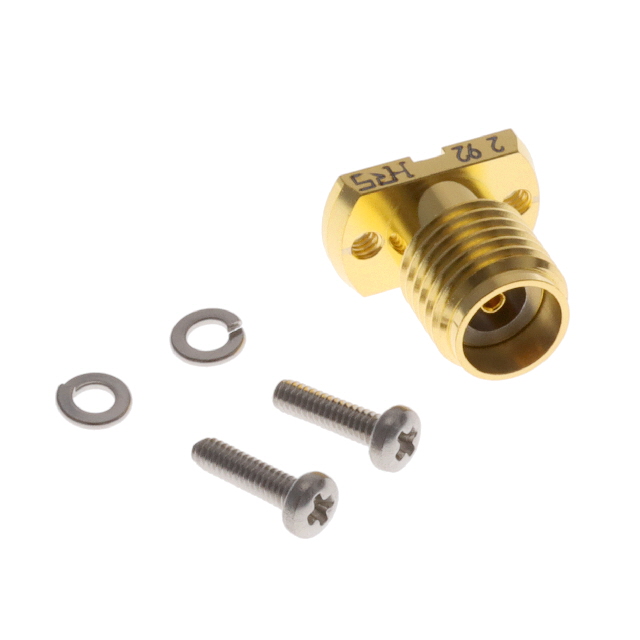

 Hirose Electric Co Ltd | -55 C | 105 ░C | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Mounting Hardware | Compression | Silver | Beryllium Copper | Flange | Threaded | Screw | 40 GHz | Receptacle Female Socket | Surface Mount | 1 | 1 Connector 2 Screws 2 Spring Washers | |
Hirose Electric Co Ltd | Nickel | -55 C | 105 ░C | Brass | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Compression | Silver | Beryllium Copper | Flange | Threaded | Screw | 43.5 GHz | Receptacle Female Socket | Surface Mount | 1 | ||
Hirose Electric Co Ltd | -55 C | 125 °C | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 2.92 mm | Compression | Silver | Beryllium Copper | Flange | Threaded | Screw | 40 GHz | Receptacle Female Socket | Surface Mount | 1 |
