Low voltage NPN medium power transistor
Description
AI

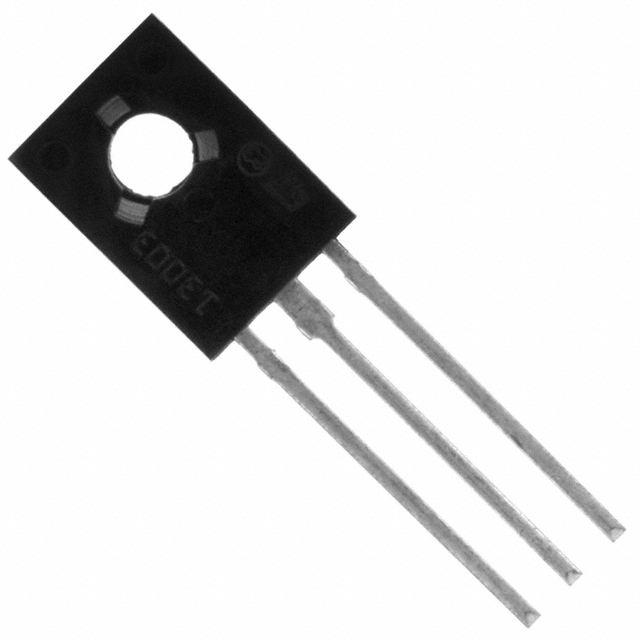

The device is a NPN transistor manufactured by using planar technology resulting in rugged high performance devices. The complementary PNP type is 2SB772.
Beta
⌘K
Low voltage NPN medium power transistor
Low voltage NPN medium power transistor
| Part | Current - Collector Cutoff (Max) [Max] | Operating Temperature | Power - Max [Max] | Frequency - Transition | Current - Collector (Ic) (Max) [Max] | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Voltage - Collector Emitter Breakdown (Max) [Max] | Package / Case | Vce Saturation (Max) @ Ib, Ic | Transistor Type | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 100 µA | 150 °C | 12.5 W | 100 MHz | 3 A | 100 | 30 V | TO-126-3 TO-225AA | 1.1 V | NPN | SOT-32 (TO-126) | Through Hole |
