MS-147 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
COAX ADAPT SMA TO COAX SWITCH
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Material | Center Contact Material | Body Finish | Convert From (Adapter End) | Adapter Type | Style | Conversion Type | Fastening Type | Mounting Type | Adapter Series | Center Contact Plating | Convert To (Adapter End) | Center Gender | Impedance | Frequency - Max [Max] | Includes | Cable Group | Contact Termination | Features | Connector Style [diameter] | Connector Style | Housing Color | Number of Ports | Shield Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | 65 °C | -10 °C | 12000 | Phosphor Bronze Stainless Steel | Beryllium Copper | Nickel; Passivated | Coaxial Switch - 4.8mm Plug Dia Jack Female Socket | Jack to Jack | Straight | Between Series | Push-Pull Threaded | Free Hanging (In-Line) | SMA to Coaxial Switch | Gold | SMA Jack Female Socket | Female to Female | 50 Ohms | 6000 MHz | ||||||||||

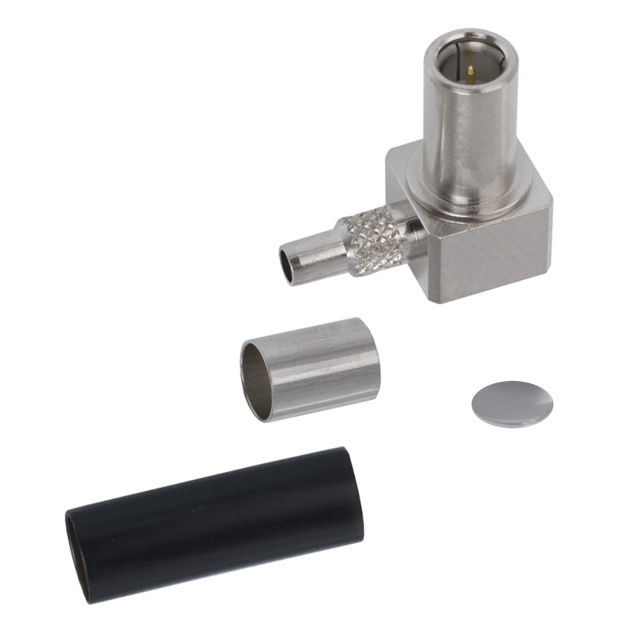

 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | 85 °C | -30 ░C | 12000 | Phosphor Bronze | Beryllium Copper | Nickel | Push-Pull | Free Hanging (In-Line) Right Angle | Gold | 50 Ohms | 3 GHz | 1 Connector 1 Heat Shrink | 1.5D-HQEW | Solder | Internal Switch | 4.8 mm | Coaxial Switch | Silver | 1 | Crimp | Plug Male Pin | |||||||
Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | 85 °C | -30 ░C | 12000 | Phosphor Bronze | Beryllium Copper | Nickel | Snap-On | Free Hanging (In-Line) Right Angle | Gold | 50 Ohms | 6000 MHz | 1 Connector 1 Heat Shrink | 1.5D-HQEW | Solder | Internal Switch | 4.8 mm | Coaxial Switch | Silver | 1 | Crimp | Plug Male Pin | |||||||
 Hirose Electric Co Ltd | Coaxial Switch - 4.8mm Plug Dia Jack Female Socket | Jack to Jack | Straight | Between Series | Push-Pull Threaded | Free Hanging (In-Line) | SMA to Coaxial Switch | Gold | SMA Jack Female Socket | Female to Female | 50 Ohms | 3 GHz |
