AM50QB Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 3.3V 38W

Part	Voltage - Input (Max) [Max]	Features	Mounting Type	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Applications	Voltage - Isolation	Supplier Device Package	Voltage - Output 1	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Type	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Approval Agency
aimtec AM50QB-11003SA30JZ-B	160 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	1	37.5 W	43 V	Railway	3000 V	Quarter Brick	3.3 V	50155	-40 C	105 ░C	11.3 A	Isolated Module	86 %	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick
aimtec AM50QB-11015SA30JZ-B	160 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	1	50 W	43 V	Railway	3000 V	Quarter Brick	15 V	50155	-40 C	105 ░C	3.33 A	Isolated Module	88 %	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick

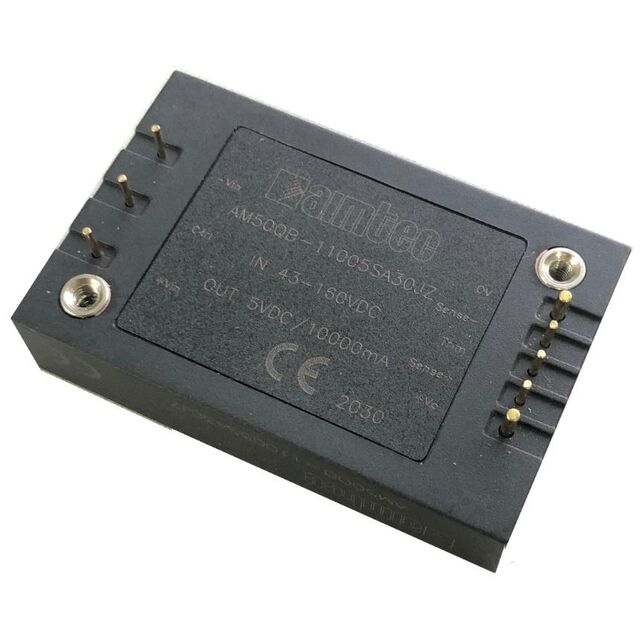

aimtec AM50QB-11048SA30JZ-K-B	160 V	Adjustable Output Heatsink Remote On/Off Remote Sense	Through Hole	1	50 W	43 V	Industrial Railway	3000 V	Quarter Brick	48 V		-40 C	105 ░C	1.04 A	Isolated Module	87 %	1.54 in			60.8 mm	1.21 "	2.39 "	Quarter Brick	39.2 mm	27.8 mm

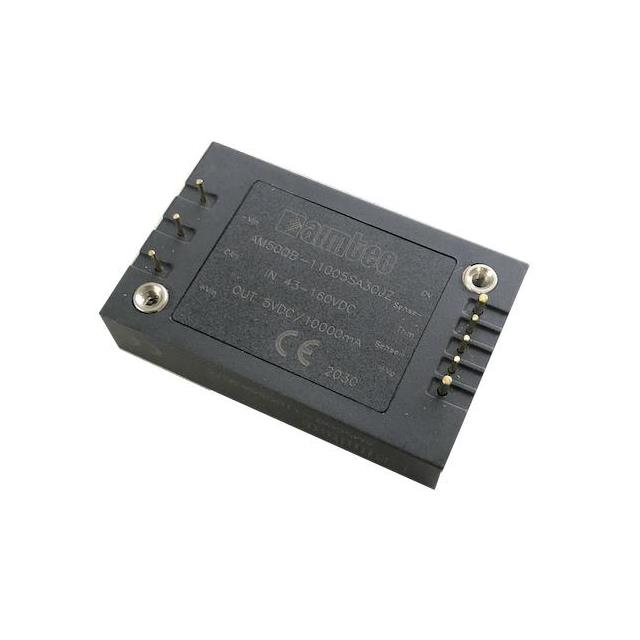

aimtec AM50QB-11048SA30JZ-B	160 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	1	50 W	43 V	Railway	3000 V	Quarter Brick	48 V	50155	-40 C	105 ░C	1.04 A	Isolated Module	87 %	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick
aimtec AM50QB-11024SA30JZ-B	160 V	Adjustable Output Remote On/Off Remote Sense	Through Hole	1	50 W	43 V	Railway	3000 V	Quarter Brick	24 V	50155	-40 C	105 ░C	2.08 A	Isolated Module	89 %	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick
aimtec AM50QB-11024S-NZ	160 V		Through Hole	1	50 W	66 V	ITE (Commercial)	3000 V		24 V		-40 °C	100 °C	2.083 A	Isolated Module	90 %	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	8-DIP Module			CE
