20-3501 Series

Catalog

CONN IC DIP SOCKET 20POS TIN

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Contact Material - Post	Mounting Type	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid)	Housing Material	Pitch - Mating	Pitch - Mating	Termination	Pitch - Post	Pitch - Post	Contact Finish - Post	Type	Type	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
Aries Electronics 20-3501-30WR	17.52 mm	0.69 in	1.5 A	UL94 V-0	Phosphor Bronze	Through Hole	Phosphor Bronze	-55 C	125 °C	20	Polyamide (PA46) Nylon 4/6 Glass Filled	0.1 "	2.54 mm	Wire Wrap	0.1 in	2.54 mm	Tin	7.62 mm	0.3 in	DIP	200 µin	5.08 µm	Closed Frame	5.08 µm	200 µin
Aries Electronics 20-3501-21	17.52 mm	0.69 in	1.5 A	UL94 V-0	Phosphor Bronze	Through Hole	Phosphor Bronze	-55 C	125 °C	20	Polyamide (PA46) Nylon 4/6 Glass Filled	0.1 "	2.54 mm	Wire Wrap	0.1 in	2.54 mm	Gold	7.62 mm	0.3 in	DIP	10 Áin	0.25 çm	Closed Frame	0.25 µm	10 µin	Gold

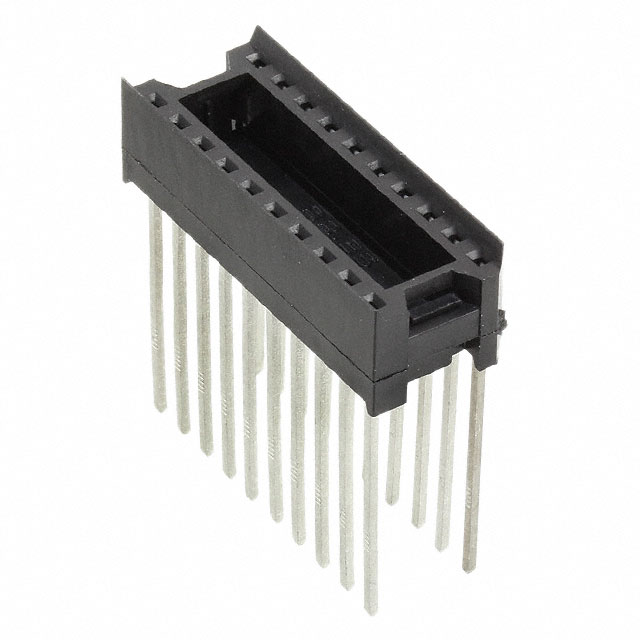

Aries Electronics 20-3501-30	17.52 mm	0.69 in	1.5 A	UL94 V-0	Phosphor Bronze	Through Hole	Phosphor Bronze	-55 C	125 °C	20	Polyamide (PA46) Nylon 4/6 Glass Filled	0.1 "	2.54 mm	Wire Wrap	0.1 in	2.54 mm	Tin	7.62 mm	0.3 in	DIP	200 µin	5.08 µm	Closed Frame	5.08 µm	200 µin
