LAN8710A Series

10/100 Base-T/TX Ethernet Transceiver with MII/RMII Interface

Catalog

10/100 Base-T/TX Ethernet Transceiver with MII/RMII Interface

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Duplex	Package / Case	Mounting Type	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Protocol	Type
Microchip Technology LAN8710AI-EZK-TR-ABC	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	-40 °C	32-SQFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710A-EZC-TR	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	0 °C	32-QFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710AI-EZK-ABC	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	-40 °C	32-SQFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710A-EZC-ABC	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	0 °C	32-SQFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710A-EZK	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	0 °C	32-QFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710A-EZC	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	0 °C	32-QFN-EP (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710AI-EZK-TR	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	-40 °C	32-QFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710A-EZC-TR-ABC	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	0 °C	32-SQFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710AI-EZK	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	-40 °C	32-QFN (5x5)	MII RMII	Transceiver
Microchip Technology LAN8710A-EZK-TR	1.6 V	3.6 V	Full	32-VFQFN Exposed Pad	Surface Mount	4	4	85 °C	0 °C	32-QFN (5x5)	MII RMII	Transceiver

Catalog

10/100 Base-T/TX Ethernet Transceiver with MII/RMII Interface

Key Features

• **•** Integrated 1.2V linear regulator

•

• **•** Up to 40% reduction from existing Microchip solutions

•

• **•** Flexible I/O voltage range from 3.6V to 1.6V

•

• **•** Extremely low energy detect standby mode

•

• **•** Low-Cost 25MHz crystal for MII/RMII

•

• **•** Industrial and extended commercial temperature range options available

•

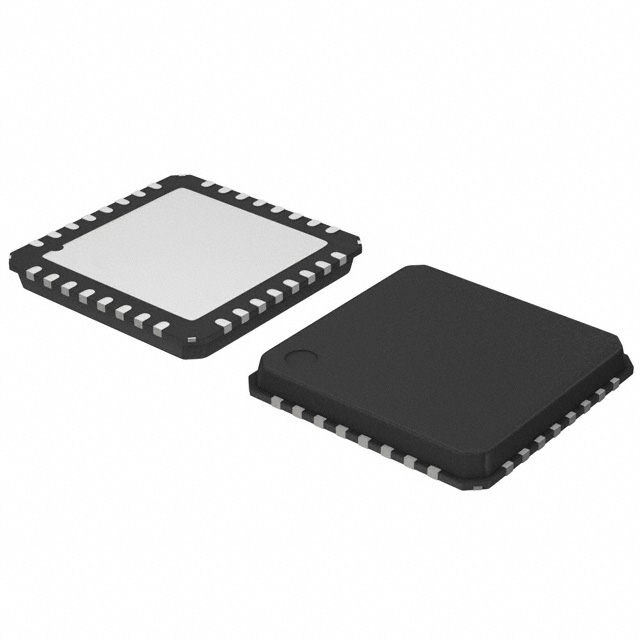

• **•** LAN8710A: 5x5mm 32-pin QFN package (MII/RMII)

•

• **•** \*NOTE: The package suffix ''-ABC'' indicates a Sawn QFN (SQFN) package. This is the recommended package

•

• Applications:* High-definition TV (HDTVs)

• * Set-top Boxes (STBs)

• * Digital Video Recorders (DVRs)

• * Personal Video Recorders (PVRs)

• * Network Printers and Servers

• * Gaming Consoles

• * Telecommunications

• * POS Terminals

• * Industrial

Description

Microchip's LAN8710A/LAN8710Ai are high-performance, small-footprint, low-power 10BASE-T/100BASE-TX transceivers specifically designed for today's consumer electronics, industrial and enterprise applications. The LAN8710A/LAN8710Ai are the industry's smallest footprint solution with up to 40% lower power consumption than existing Microchip transceivers. The LAN8710A/LAN8710Ai have an integrated voltage regulator and ESD protection components to help reduce Bill of Material (BOM) costs. The LAN8710A/LAN8710Ai connect to the MAC layer using a variable voltage, digital standard MII or RMII interface, These devices support HP Auto-MDIX†, employ Microchip's proprietary flexPWR® technology and are available in both extended commercial (0°C to 85°C) and industrial (-40°C to 85°C) temperature range options. †HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together. Microchip's complimentary and confidential [MicroCHECK](https://www.microchip.com/en-us/support/design-help/design-check-services) design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
