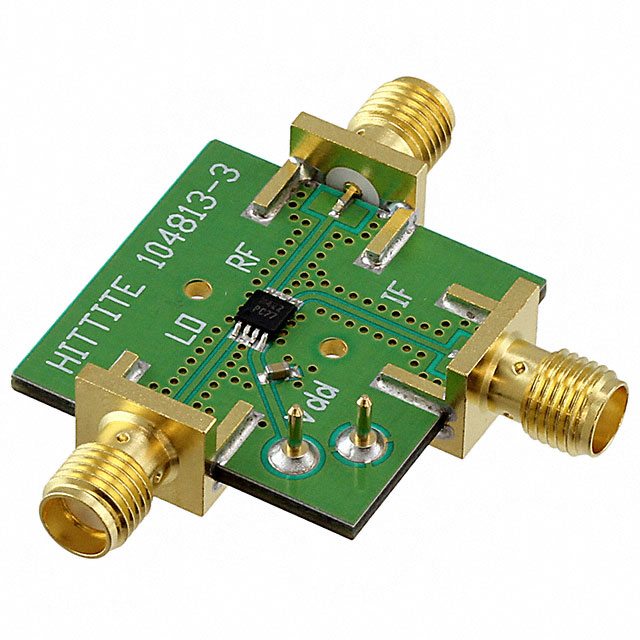

DBL-BAL Mixer with LO Amplifier SMT, 1.2 - 2.6 GHz
Key Features
• Integrated LO Amp w/ Pdiss <100 mW
• Conversion Loss / Noise Figure: 8 dB
• Low LO Drive: 0 dBm
• Input IP3: +15 dBm
• Single Positive Supply: 3V @ 30 mA
Description
AI
The HMC422MS8(E) is a double balanced mixer IC with an integrated LO amplifier. This mixer can operate as an upconverter or downconverter between 1.2 GHz and 2.6 GHz. With the integrated LO amplifier, the mixer requires an LO drive level of only 0 dBm, and requires only 30mA from a single positive +3V rail. The mixer has 8 dB of conversion loss, an input P1dB of +8 dBm and an input third order intercept point of +15 dBm at 2 GHz.ApplicationsMMDS & ISMWireless Local LoopWirelessLANCellular Infrastructure
