MMCX Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS MINI PUSH-ON CONN RECEPT STR
| Part | Connector Style | Connector Type | Number of Ports | Mounting Type | Shield Termination | Fastening Type | Frequency - Max [Max] | Contact Termination | Impedance | Housing Color | Center Contact Material | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Dielectric Material | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

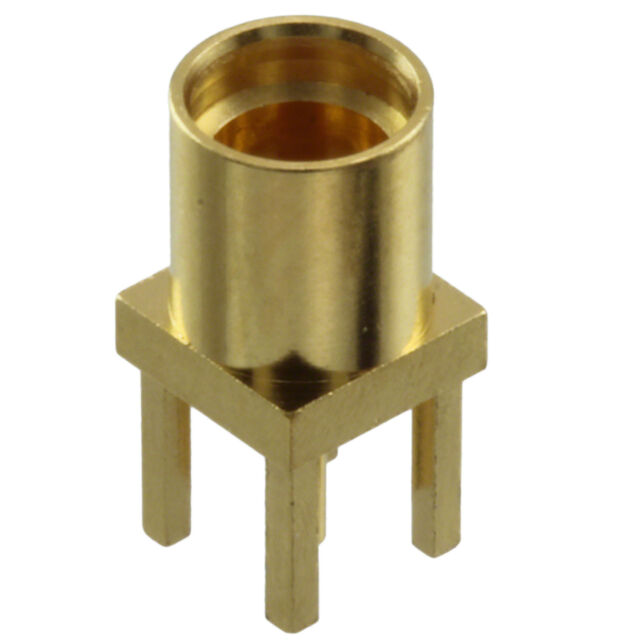

 Hirose Electric Co Ltd | MMCX | Receptacle Female Socket | 1 | Through Hole | Solder | Snap-On | 6000 MHz | Solder | 50 Ohms | Gold | Beryllium Copper | ||||||||
Hirose Electric Co Ltd | MMCX | Receptacle Female Socket | 1 | Surface Mount | Solder | Snap-On | 6000 MHz | Solder | 50 Ohms | Gold | Beryllium Copper | Gold | Gold | -55 C | 85 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | |
 Hirose Electric Co Ltd | MMCX | Plug Male Pin | 1 | Free Hanging (In-Line) Right Angle | Crimp | Snap-On | 6000 MHz | Solder | 50 Ohms | Gold | Phosphor Bronze | RG-178B |
