TF13 Series

Catalog

CONN FPC BOTTOM 10POS 0.4MM R/A

Part	Housing Color	Actuator Color	Current Rating (Amps)	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Connector/Contact Type	Actuator Material	Termination	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Mounting Type	Features	Voltage Rating	Cable End Type	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	FFC, FCB Thickness [custom]	Material Flammability Rating	Housing Material	Flat Flex Type	Number of Positions	Contact Finish

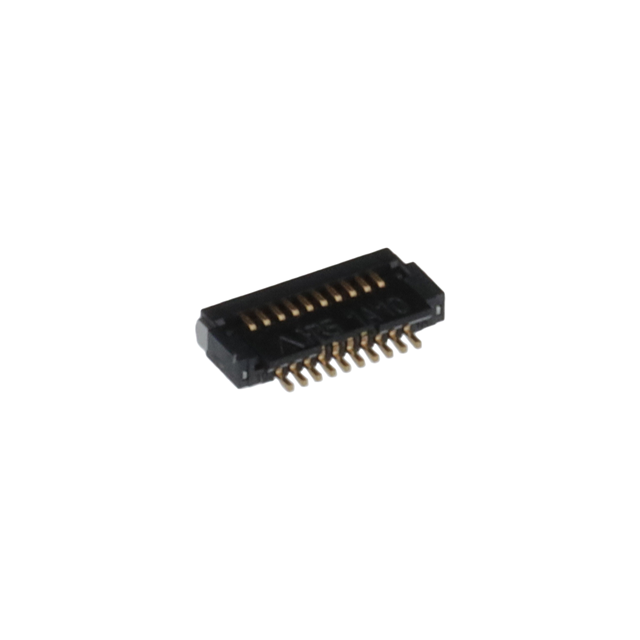

Hirose Electric Co Ltd TF13BA-10S-0.4SH(800)	Black	Black	0.5 A	20	1.97 Áin	0.05 Ám	Contacts Bottom	Liquid Crystal Polymer (LCP)	Solder	0.4 mm	0.016 in	0.88 mm	0.035 in	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	50 V	Notched	Backlock Flip Lock	-55 C	85 °C	Phosphor Bronze	0.2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	FPC	10	Gold

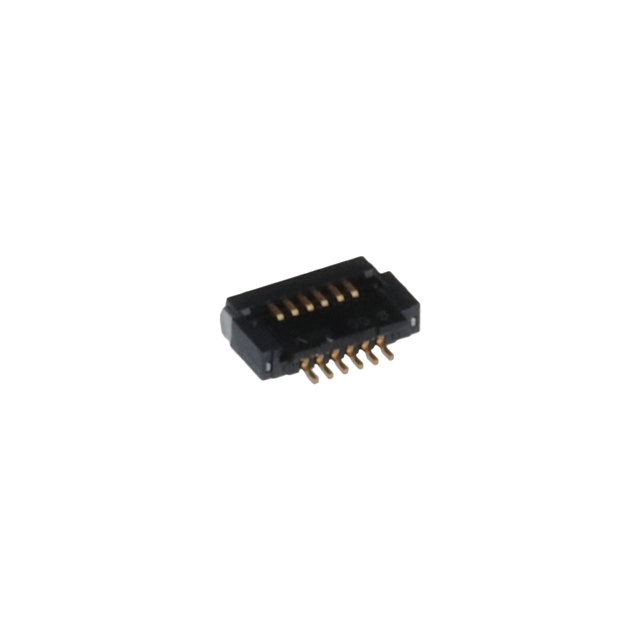

Hirose Electric Co Ltd TF13BA-6S-0.4SH(800)	Black	Black	0.5 A	20	1.97 Áin	0.05 Ám	Contacts Bottom	Liquid Crystal Polymer (LCP)	Solder	0.4 mm	0.016 in	0.88 mm	0.035 in	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	50 V	Notched	Backlock Flip Lock	-55 C	85 °C	Phosphor Bronze	0.2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	FPC	6	Gold

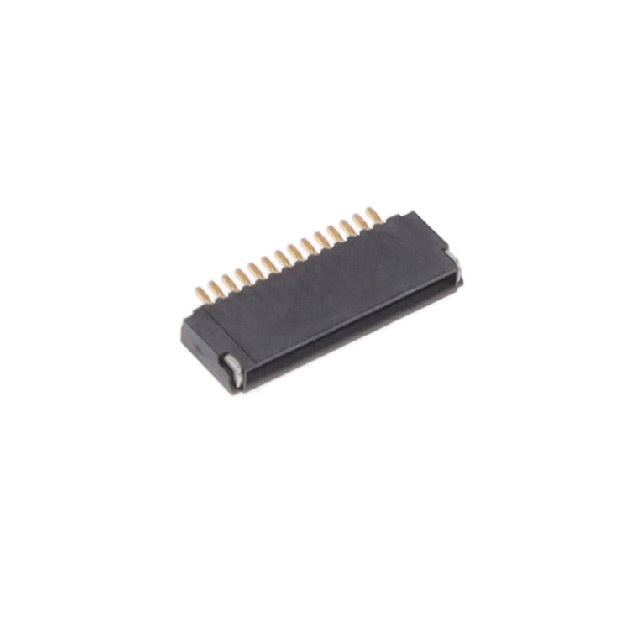

Hirose Electric Co Ltd TF13BSA-14S-0.4SH(800)	Black	Black	0.5 A	20	1.97 Áin	0.05 Ám	Contacts Bottom	Liquid Crystal Polymer (LCP)	Solder	0.4 mm	0.016 in	0.88 mm	0.035 in	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	50 V	Notched	Backlock Flip Lock	-55 C	85 °C	Phosphor Bronze	0.2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	FPC	14	Gold
Hirose Electric Co Ltd TF13-10S-0.4SH(800)

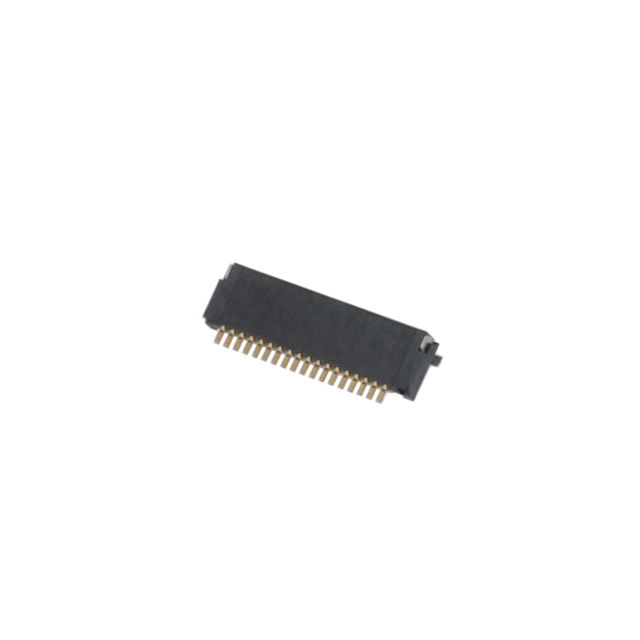

Hirose Electric Co Ltd TF13BSA-18S-0.4SH(800)	Black	Black	0.5 A	20	1.97 Áin	0.05 Ám	Contacts Bottom	Liquid Crystal Polymer (LCP)	Solder	0.4 mm	0.016 in	0.88 mm	0.035 in	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	50 V	Notched	Backlock Flip Lock	-55 C	85 °C	Phosphor Bronze	0.2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	FPC	18	Gold
Hirose Electric Co Ltd TF13-9S-0.4SH(800)

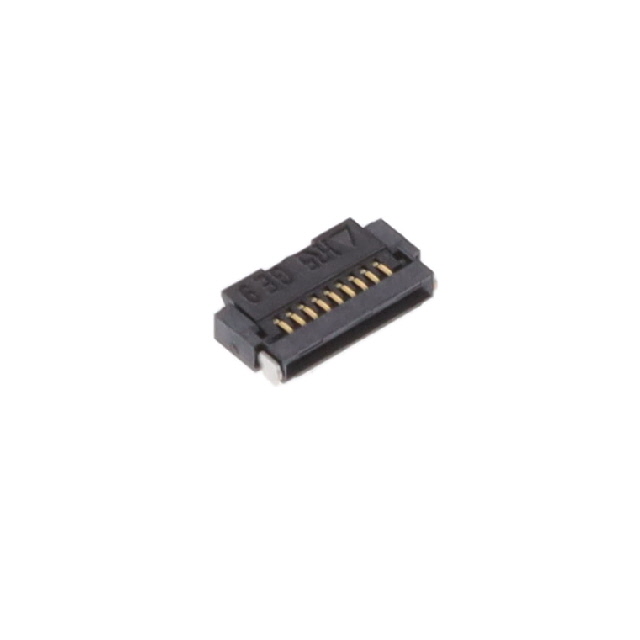

Hirose Electric Co Ltd TF13BA-9S-0.4SH(800)	Black	Black	0.5 A	20	1.97 Áin	0.05 Ám	Contacts Bottom	Liquid Crystal Polymer (LCP)	Solder	0.4 mm	0.016 in	0.88 mm	0.035 in	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	50 V	Notched	Backlock Flip Lock	-55 C	85 °C	Phosphor Bronze	0.2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	FPC	9	Gold

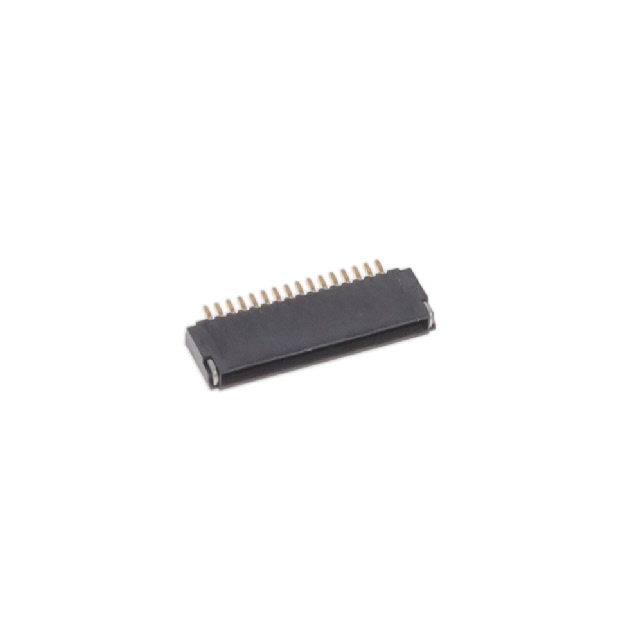

Hirose Electric Co Ltd TF13BSA-16S-0.4SH(800)	Black	Black	0.5 A	20	1.97 Áin	0.05 Ám	Contacts Bottom	Liquid Crystal Polymer (LCP)	Solder	0.4 mm	0.016 in	0.88 mm	0.035 in	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	50 V	Notched	Backlock Flip Lock	-55 C	85 °C	Phosphor Bronze	0.2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	FPC	16	Gold

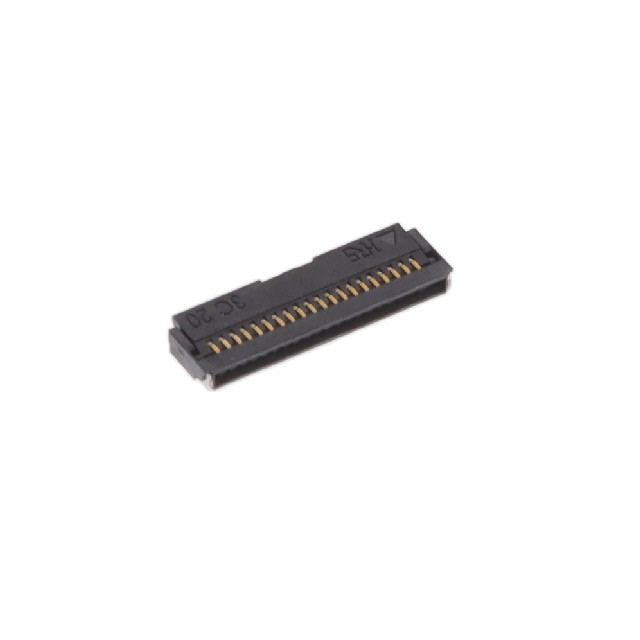

Hirose Electric Co Ltd TF13BSA-20S-0.4SH(800)	Black	Black	0.5 A	20	1.97 Áin	0.05 Ám	Contacts Bottom	Liquid Crystal Polymer (LCP)	Solder	0.4 mm	0.016 in	0.88 mm	0.035 in	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	50 V	Notched	Backlock Flip Lock	-55 C	85 °C	Phosphor Bronze	0.2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	FPC	20	Gold
