AME30 Series

Manufacturer: aimtec

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 12V 2.5A 30W MEDICAL 5-PIN

Part	Line Regulation	Approval Agency	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Mounting Type	Power (Watts)	Package / Case	Number of Outputs	Features	Current - Output (Max) [Max]	Standard Number	Efficiency	Current - Output (Max) [Max]	Load Regulation	Current - Output (Max)	Weight	Weight
aimtec AME30-12SMAZ	1 %	CB CE cULus cURus UL	±1%	90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	12 V	Through Hole	30 Watts	5-DIP Module 4 Leads	1	Universal Input	2.5 A	60601-1	84 %
aimtec AME30-24DMAZ	1 %	CB CE cURus	±1%	90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	24 V	Through Hole	30 Watts	5-DIP Module	2	Universal Input	625 mA		77 %	625 mA
aimtec AME30-5DMAZ	1 %	CB CE cURus		90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	5 V	Through Hole	30 Watts	5-DIP Module	2	Universal Input			80 %		2 %	3 A
aimtec AME30-15DMAZ	1 %	CB CE cURus	±1%	90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	15 V	Through Hole	30 Watts	5-DIP Module	2	Universal Input						1 A

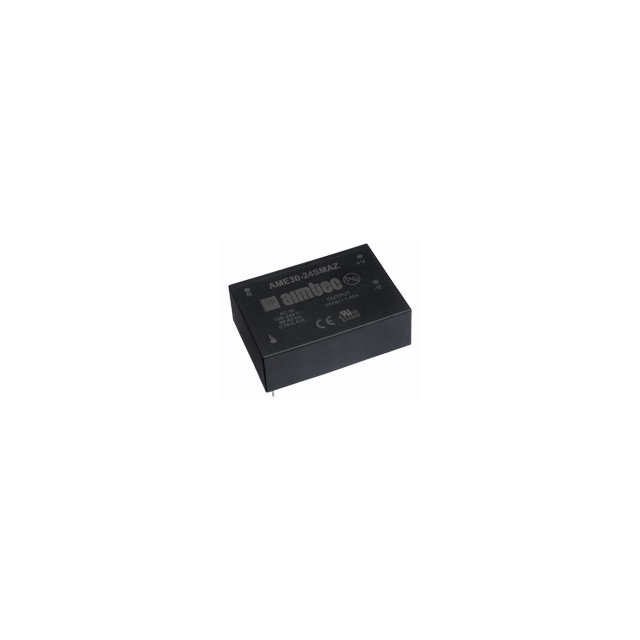

aimtec AME30-5SMAZ	1 %	CB CE cULus cURus UL	±1%	90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	5 V	Through Hole	30 Watts	5-DIP Module 4 Leads	1	Universal Input	6 A	60601-1					0.661 lb	300 g
aimtec AME30-24SMAZ	1 %	CB CE cULus cURus UL	±1%	90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	24 V	Through Hole	30 Watts	5-DIP Module 4 Leads	1	Universal Input	1.25 A	60601-1	83 %

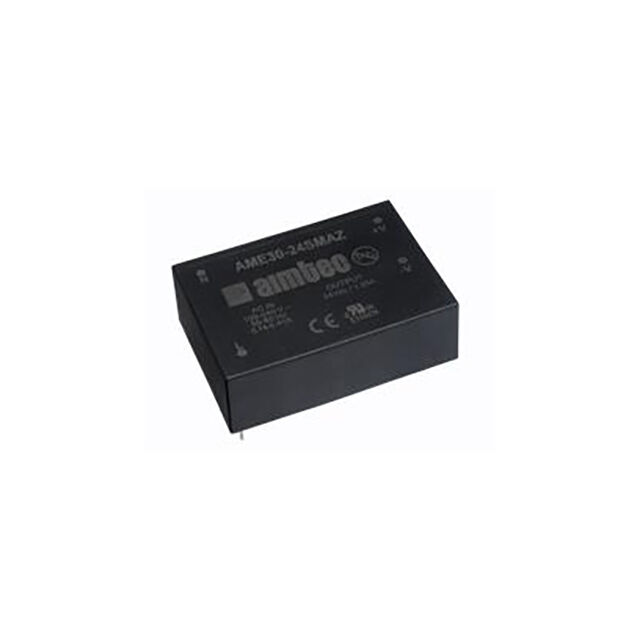

aimtec AME30-3.3SMAZ	1 %	CB CE cULus cURus UL	±1%	90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	3.3 V	Through Hole	20 W	5-DIP Module 4 Leads	1	Universal Input	6 A	60601-1	79 %
aimtec AME30-12DMAZ	1 %	CB CE cURus		90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	12 V	Through Hole	30 Watts	5-DIP Module	2	Universal Input					2 %	1.25 A
aimtec AME30-15SMAZ	1 %	CB CE cULus cURus UL	±1%	90 VAC 130 VDC	264 VAC 370 VDC	-40 °C	85 °C	Enclosed	ITE (Commercial) Medical	2.48 in	1.18 in	30 mm	90.5 mm	3.56 "	63 mm	15 V	Through Hole	30 Watts	5-DIP Module 4 Leads	1	Universal Input	2 A	60601-1	84 %
