C1156 Series

Catalog

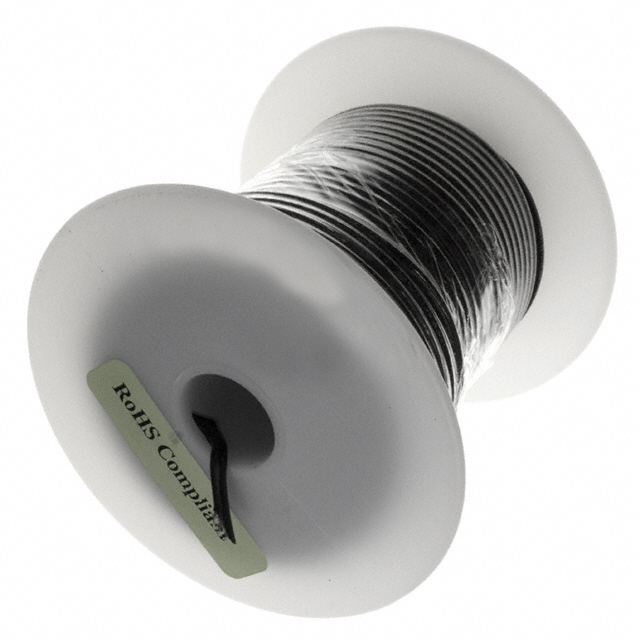

CABLE COAXIAL RG-174 26AWG 2500'

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length [x]	Length [x]	Shield Type	Cable Group	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Cable Type	Wire Gauge	Impedance	VoP, Velocity of Propagation	Shield Material	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Length	Length
Prysmian Group C1156.44.01	Poly-Vinyl Chloride (PVC)	0.103 in	2.62 mm	Black	762 m	2500 '	Braid	RG-174	7	34 AWG	RF Signal	Coaxial	26 AWG	50 Ohms
Prysmian Group C1156.43.01	Poly-Vinyl Chloride (PVC)	0.103 in	2.62 mm	Black	609.6 m	2000 ft	Braid	RG-174	7	34 AWG	RF Signal Video	Coaxial	0.14 mm² 26 AWG	50 Ohms	66	Copper Tinned	Copper Coated Steel	1.52 mm	0.06 in	Solid Polyethylene (PE)
Prysmian Group C1156.44.01	Poly-Vinyl Chloride (PVC)	0.103 in	2.62 mm	Black	762 m	2500 '	Braid	RG-174	7	34 AWG	RF Signal	Coaxial	26 AWG	50 Ohms	66	Copper Tinned	Copper Coated Steel	1.52 mm	0.06 in	Solid Polyethylene (PE)
Prysmian Group C1156.18.01	Poly-Vinyl Chloride (PVC)	0.103 in	2.62 mm	Black	152.4 m	500 ft	Braid	RG-174	7	34 AWG	RF Signal Video	Coaxial	0.14 mm² 26 AWG	50 Ohms	66	Copper Tinned	Copper Coated Steel	1.52 mm	0.06 in	Solid Polyethylene (PE)
Prysmian Group C1156.41.01	Poly-Vinyl Chloride (PVC)	0.103 in	2.62 mm	Black	304.8 m	1000 ft	Braid	RG-174	7	34 AWG	RF Signal Video	Coaxial	0.14 mm² 26 AWG	50 Ohms	66	Copper Tinned	Copper Coated Steel	1.52 mm	0.06 in	Solid Polyethylene (PE)
Prysmian Group C1156.41.01	Poly-Vinyl Chloride (PVC)	0.103 in	2.62 mm	Black	15.24 m 304.8 m	50 ft 1000 ft	Braid	RG-174	7	34 AWG	RF Signal Video	Coaxial	0.14 mm² 26 AWG	50 Ohms							100 '	30.48 m
