X0115 Series

Catalog

THYRISTOR SCR SENSITIVE GATE 1A 600V 3-PIN DO-214AA T/R

Part	Package / Case	Supplier Device Package	SCR Type	Mounting Type	Voltage - On State (Vtm) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Off State (Max) [Max] [custom]	Current - On State (It (AV)) (Max)	Voltage - Off State	Operating Temperature [Min]	Operating Temperature [Max]

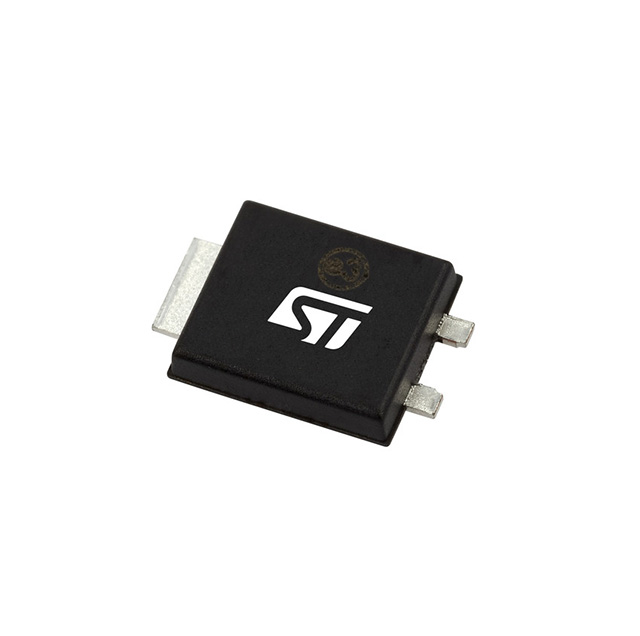

STMicroelectronics X0115MUF	3-SMB Flat Leads	SMBflat-3L	Sensitive Gate	Surface Mount	1.4 V	800 mV	150 µA	5 mA	1 µA	640 mA	600 V	-40 C	125 °C
