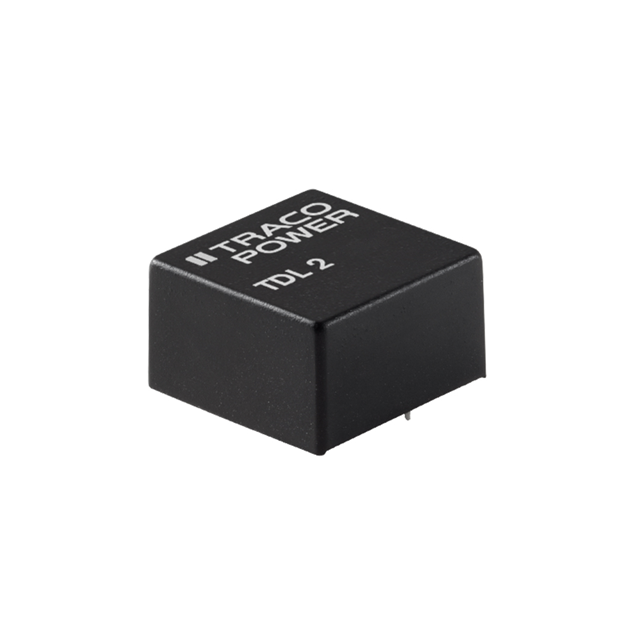

TDL 2 Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 36-75VIN 5V/200MA -5V/200MA 2W DIP ISO
| Part | Type | Package / Case | Number of Outputs | Voltage - Input (Max) [Max] | Applications | Mounting Type | Voltage - Output 2 | Voltage - Output 1 | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Features | Voltage - Input (Min) [Min] | Power (Watts) | Efficiency | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Isolated Module | 7-DIP Module 5 Leads | 2 | 75 V | ITE (Commercial) | Through Hole | -5 V | 5 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 36 V | 2 W | ||||
 Traco Power | Isolated Module | 7-DIP Module 4 Leads | 1 | 36 V | ITE (Commercial) | Through Hole | 12 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 18 V | 2 W | 86 % | 167 mA | |||
Traco Power | Isolated Module | 7-DIP Module 5 Leads | 2 | 36 V | ITE (Commercial) | Through Hole | -5 V | 5 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 18 V | 2 W | 84 % | |||
Traco Power | Isolated Module | 7-DIP Module 4 Leads | 1 | 75 V | ITE (Commercial) | Through Hole | 12 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 36 V | 2 W | 85 % | 167 mA | |||
Traco Power | Isolated Module | 7-DIP Module 4 Leads | 1 | 10 V | ITE (Commercial) | Through Hole | 3.3 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 4.5 V | 1.3 W | 79 % | 400 mA | |||
Traco Power | Isolated Module | 7-DIP Module 4 Leads | 1 | 10 V | ITE (Commercial) | Through Hole | 15 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 4.5 V | 2 W | 87 % | 134 mA | |||
Traco Power | Isolated Module | 7-DIP Module 5 Leads | 2 | 10 V | ITE (Commercial) | Through Hole | -15 V | 15 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 4.5 V | 2 W | 85 % | 67 mA | 67 mA | |
Traco Power | Isolated Module | 7-DIP Module 4 Leads | 1 | 36 V | ITE (Commercial) | Through Hole | 15 V | 1.5 kV | 70 °C | -40 C | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 18 V | 2 W | 87 % | 134 mA |
