FX30A Series

Catalog

CONN RCPT 3POS 0.15 GOLD PCB R/A

Part	Pitch - Mating	Pitch - Mating	Termination	Features	Voltage Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Number of Positions	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish - Post	Contact Material	Material Flammability Rating	Shrouding

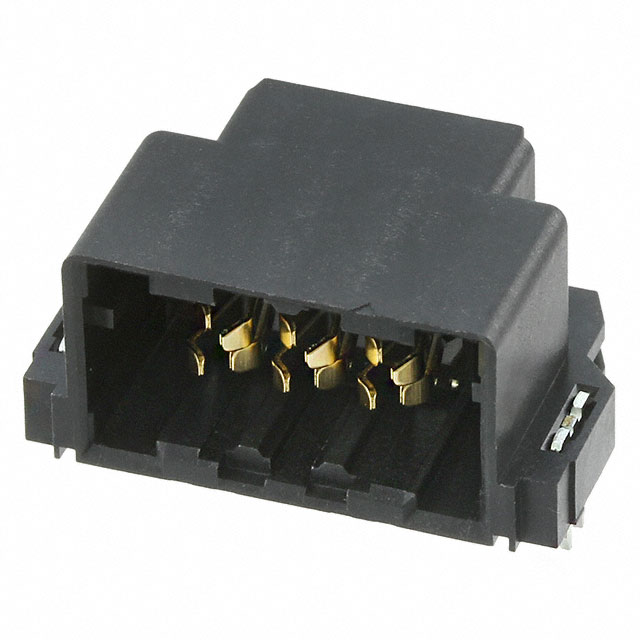

Hirose Electric Co Ltd FX30A-3S-3.81DS	0.15 in	3.81 mm	Solder	Board Guide Board Lock	250 V	Receptacle	3.9 µin	0.099 µm	Right Angle Through Hole	15 A	Gold	All	Black	1	11 mm	0.433 "
Hirose Electric Co Ltd FX30A-5S-3.81DS	0.15 in	3.81 mm	Solder	Board Guide Board Lock	250 V	Receptacle	3.9 µin	0.099 µm	Right Angle Through Hole	13 A	Gold	All	Black	1	11 mm	0.433 "	5
Hirose Electric Co Ltd FX30A-4S-3.81DS	0.15 in	3.81 mm	Solder	Board Guide Board Lock	250 V	Receptacle	3.9 µin	0.099 µm	Right Angle Through Hole	13 A	Gold	All	Black	1	11 mm	0.433 "	4
Hirose Electric Co Ltd FX30A-5P-3.81DSA20	0.15 in	3.81 mm	Solder	Board Guide Board Lock		Header	3.9 µin	0.099 µm	Through Hole		Gold	All	Black	1	11 mm	0.433 "	5	18 mm	39.4 çin	1 çm	Nylon Polyamide (PA)	Rectangular	Push-Pull	0.13 "	3.3 mm	Male Blade	Tin	Copper Alloy	UL94 V-0	Shrouded - 4 Wall
