VL53L1 Series

Time-of-Flight (ToF) long-distance ranging sensor with advanced multizone and multiobject detection

Catalog

Time-of-Flight (ToF) long-distance ranging sensor with advanced multizone and multiobject detection

Part	Suggested Programming Environment	Interconnect System	Contents	Utilized IC / Part	Platform	Type	Function	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type

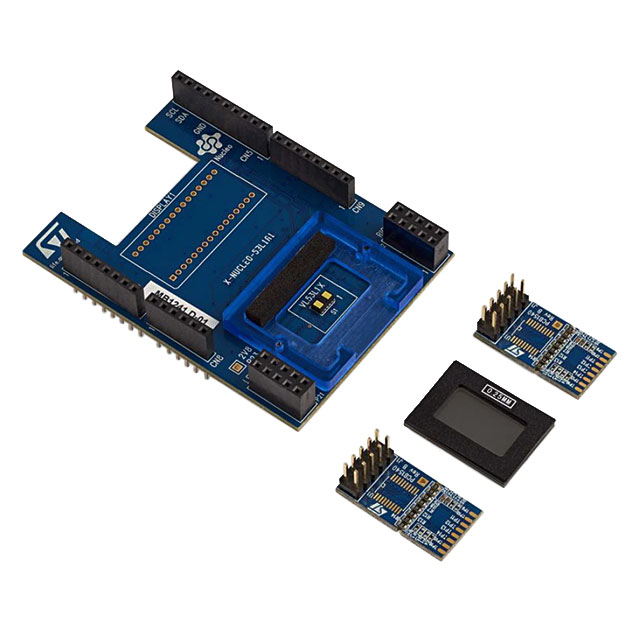

STMicroelectronics X-NUCLEO-53L1A1	STM32Cube	Arduino R3 Shield	Accessories Board(s)	VL53L1CX	Nucleo	Sensor	Light 3D Time-of-Flight (ToF)

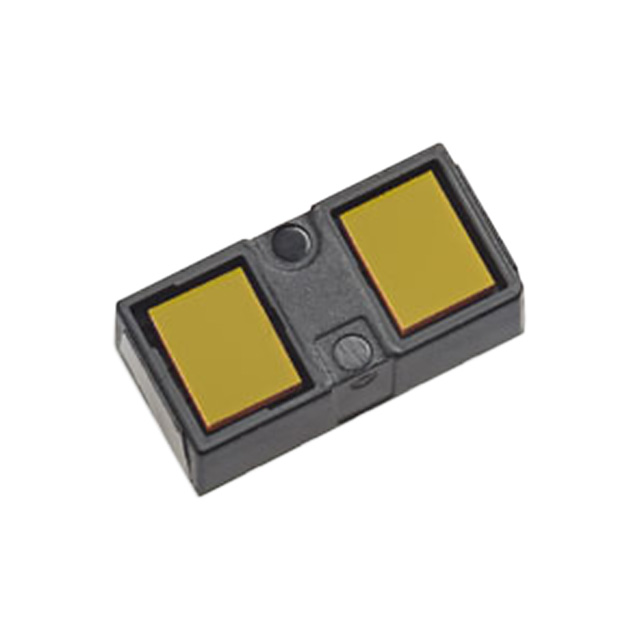

STMicroelectronics VL53L1CBV0FY/1								8 m	314.96 in	2.6 V	3.5 V	85 °C	-20 ░C	I2C

Catalog

Time-of-Flight (ToF) long-distance ranging sensor with advanced multizone and multiobject detection

Description

The VL53L1 is a laser-ranging ToF sensor. It covers applications requiring long distance ranging up to 800 cm (ranging mode), multizone ranging (scanning mode), and low-power (autonomous mode). A comprehensive application note (AN5573) provides technical details on the programming interface including its bare driver. The API (application programming interface) enables the device to be controlled and managed in these three modes, to meet the requirements of all applications. With patented algorithms and ingenious module construction, the VL53L1 is also able to detect different objects within the FoV (field of view). Its depth information (histogram) is at 60 Hz. Scene browsing and multizone detection are now possible with the VL53L1, thanks to a software customizable detection array. This provides a quicker "touch-to-focus", or minidepth map use cases.
