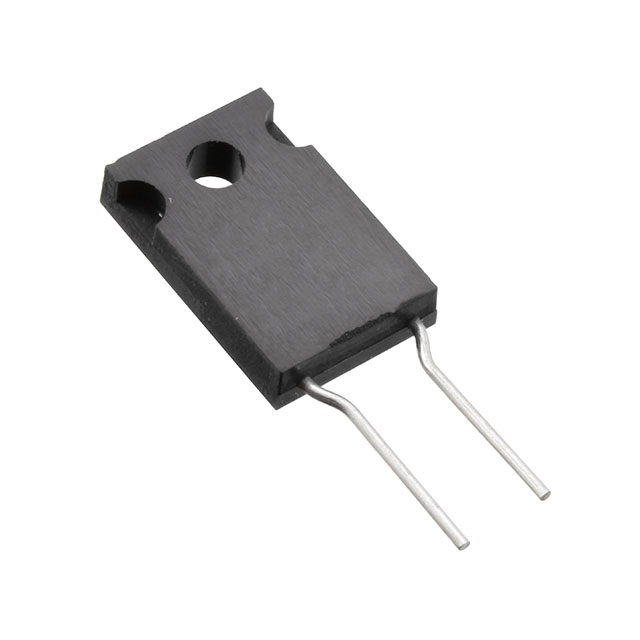

PWR221T Series

Catalog

RES 100 OHM 5% 30W TO220-2

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Tolerance	Resistance	Power (Watts)	Supplier Device Package	Package / Case	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Composition	Temperature Coefficient
Bourns Inc. PWR221T-30-1000J	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	5 %	100 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200 Current Sense Pulse Withstanding	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-30-5R00F	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	1 %	5 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200 Current Sense Pulse Withstanding	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-30-1002F	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	1 %	10000 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200 Current Sense Pulse Withstanding	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-50-R050J	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-55 C	2	5 %	0.05 Ohms	50 W	TO-220	TO-220-2 Full Pack	Current Sense	19.3 mm	0.76 in	Thick Film	300 ppm/°C
Bourns Inc. PWR221T-30-R750F	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	1 %	0.75 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-50-R220F	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-55 C	2	1 %	220 mOhms	50 W	TO-220	TO-220-2 Full Pack	Current Sense	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-30-1000F	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	1 %	100 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200 Current Sense Pulse Withstanding	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-30-33R0J	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	5 %	33 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200 Current Sense Pulse Withstanding	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-30-R250F	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	1 %	0.25 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200 Current Sense Pulse Withstanding	19.3 mm	0.76 in	Thick Film	100 ppm/°C
Bourns Inc. PWR221T-30-30R0J	3.18 mm	0.41 in	10.41 mm	0.125 "	150 °C	-50 °C	2	5 %	30 Ohms	30 Watts	TO-220	TO-220-2 Full Pack	Automotive AEC-Q200 Current Sense Pulse Withstanding	19.3 mm	0.76 in	Thick Film	100 ppm/°C
