86964 Series

Catalog

CABLE 4COND 16AWG GRAY

Part	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Number of Conductors	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Prysmian Group 86964.35.10	76.2 m	250 ft	10.8 mm	0.425 in	16 AWG	Gray	Copper Bare	30 AWG	26	600 V	90 °C	-40 C	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	0.03 in	0.762 mm

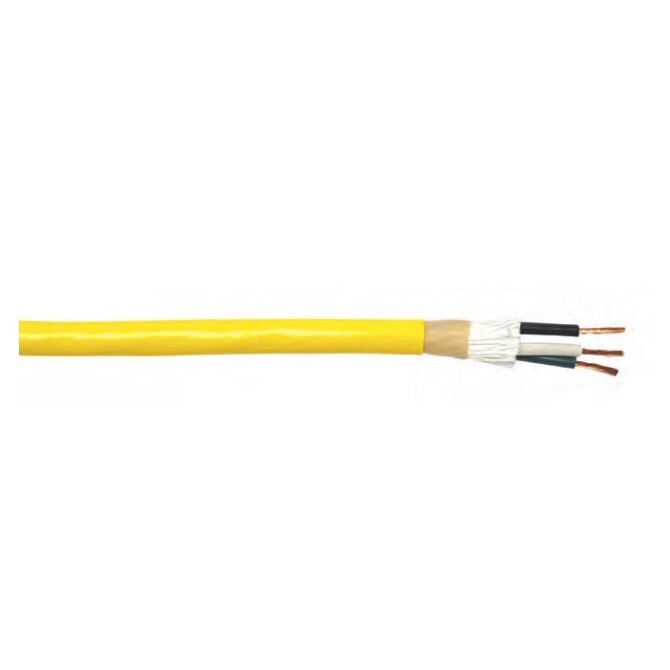

Prysmian Group 86964.35.05	76.2 m	250 ft	10.8 mm	0.425 in	16 AWG	Yellow	Copper Bare	30 AWG	26	600 V	90 °C	-40 C	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	0.03 in	0.762 mm
Prysmian Group 86964.35.10	76.2 m	250 ft	10.8 mm	0.425 in	16 AWG	Gray	Copper Bare	30 AWG	26	600 V	90 °C	-40 C	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	0.03 in	0.762 mm
Prysmian Group 86964.35.05	76.2 m	250 ft	10.8 mm	0.425 in	16 AWG	Yellow	Copper Bare	30 AWG	26	600 V	90 °C	-40 C	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	0.03 in	0.762 mm
