AZ2280-1A Series

Catalog

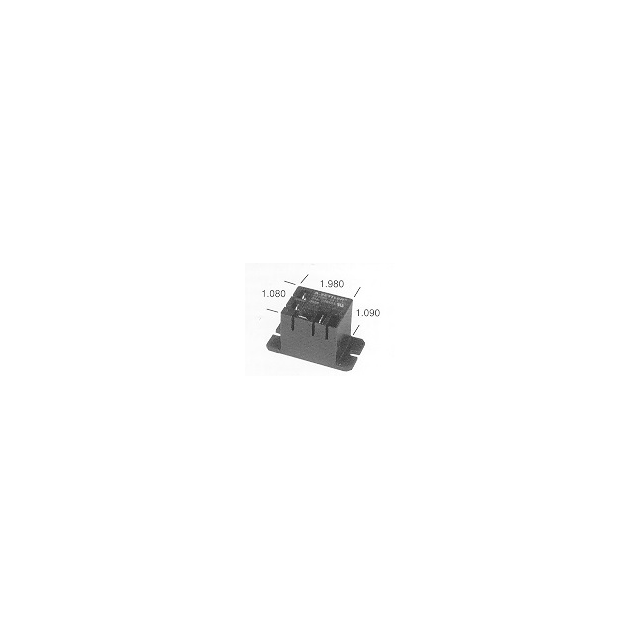

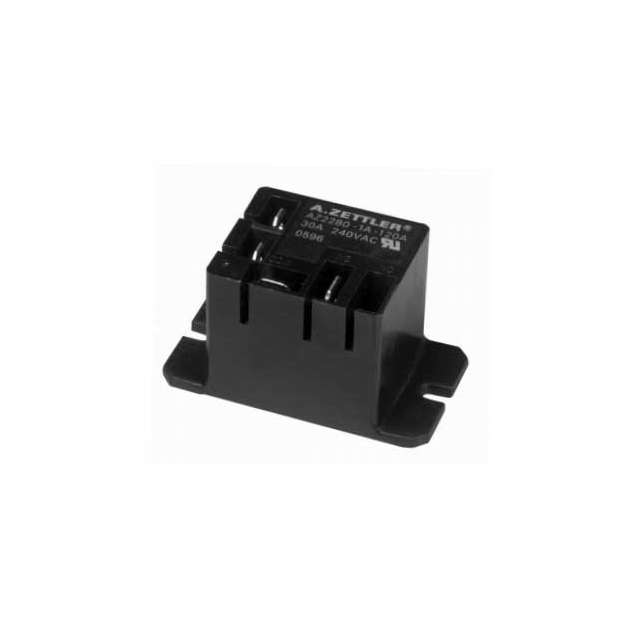

RELAY GEN PURPOSE SPST 40A 120V

Part	Coil Resistance	Relay Type	Termination Style	Termination Style	Coil Insulation	Contact Form	Release Time	Coil Voltage	Seal Rating	Operate Time	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Switching Voltage	Approval Agency	Coil Current	Contact Rating (Current)	Mounting Type	Coil Type	Must Release Voltage	Contact Material
American Zettler AZ2280-1A-120AEF	2500 Ohms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	120 VAC	Sealed - Fully	15 ms	840 W 11080 VA	60 °C	-55 C	102 VAC	28 VDC 277 VAC	cUR UL VDE	48 mA	40 A	Chassis Mount	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1A-24A	100 Ohms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	24 VAC		15 ms	840 W 11080 VA	60 °C	-55 C		28 VDC 277 VAC	cUR UL VDE	240 mA	40 A	Chassis Mount	Non Latching	4.8 VAC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1AT-240AE	13.49 kOhms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	240 VAC/DC	Sealed - Fully	15 ms	840 W 11080 VA	60 °C	-55 C	187 VAC	28 VDC 277 VAC	cUR UL VDE	17.8 mA	40 A	Chassis Mount	Non Latching	48 VAC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1A-277AEF	15 kOhms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	277 VAC	Sealed - Fully	15 ms	840 W 11080 VA	60 °C	-55 C	235.4 VAC	28 VDC 277 VAC	cUR UL VDE	18.5 mA	40 A	Chassis Mount	Non Latching	55.4 VAC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1A-277AF	15 kOhms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	277 VAC		15 ms	840 W 11080 VA	60 °C	-55 C	235.4 VAC	28 VDC 277 VAC	cUR UL VDE	18.5 mA	40 A	Chassis Mount	Non Latching	55.4 VAC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1AT-24AF	100 Ohms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	24 VAC		15 ms	840 W 11080 VA	60 °C	-55 C		28 VDC 277 VAC	cUR UL VDE	240 mA	40 A	Chassis Mount	Non Latching	4.8 VAC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1AE-120AF	2500 Ohms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	120 VAC		15 ms	840 W 11080 VA	60 °C	-55 C	102 VAC	28 VDC 277 VAC	cUR UL VDE	48 mA	40 A	Chassis Mount	Non Latching	24 VAC	Silver Tin Oxide (AgSnO)
American Zettler AZ2280-1A-18DE	380 Ohms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	18 VDC	Sealed - Fully	15 ms	840 W 11080 VA	85 °C	-55 C	13.5 VDC	28 VDC 277 VAC	cUR UL VDE	47 mA	40 A	Chassis Mount	Non Latching	1.8 VDC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1A-6DE	40 Ohms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms		Sealed - Fully	15 ms	840 W 11080 VA	85 °C	-55 C	4.5 VDC	28 VDC 277 VAC	cUR UL VDE	0.15 A	40 A	Chassis Mount	Non Latching	0.6 VDC	Silver Cadmium Oxide (AgCdO)
American Zettler AZ2280-1A-120AKF	2500 Ohms	General Purpose	0.187 in 0.25 in	Quick Connect	Class F	SPST-NO (1 Form A)	10 ms	120 VAC		15 ms	840 W 11080 VA	60 °C	-55 C	102 VAC	28 VDC 277 VAC	cUR UL VDE	48 mA	40 A	Chassis Mount	Non Latching	24 VAC	Silver Cadmium Oxide (AgCdO)
