ADuM5028 Series

Low Emission Isolated DC to DC Converter

Catalog

Low Emission Isolated DC to DC Converter

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Number of Outputs	Supplier Device Package	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Efficiency	Package / Case	Package / Case [custom]	Package / Case [custom]	Utilized IC / Part	Current - Output	Voltage - Input	Board Type	Main Purpose	Voltage - Output	Supplied Contents	Outputs and Type	Outputs and Type

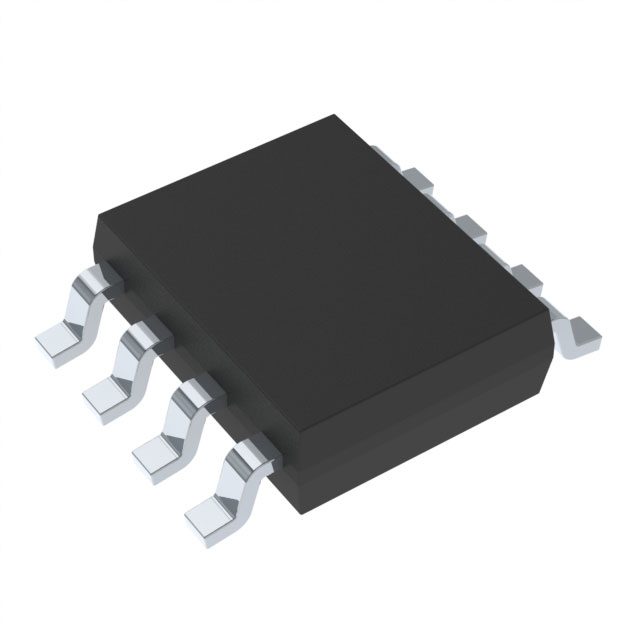

Analog Devices ADUM5028-3BRIZ-RL	3.6 V	3.3 V	60 mA	0.23 in	2.7 mm	7.5 mm	0.3 "	0.1 "	5.9 mm	3 V	3000 V	OTP UVLO	1	8-SOIC-IC	Isolated Module	125 °C	-40 °C	ITE (Commercial)	Surface Mount	33 %	8-SOIC	0.295 in	7.5 mm
Analog Devices EVAL-ADUM5028EBZ																								ADuM5028	60 mA	5 VDC	Fully Populated	DC/DC Converter	3.3 V 5 V	Board(s)	Isolated	1

Catalog

Low Emission Isolated DC to DC Converter

Key Features

• isoPower integrated, isolated dc-to-dc converter

• 100 mA output current for ADuM5020

• 60 mA output current for ADuM5028

• Meets CISPR22 Class B emissions limits at full load on a 2-layer PCB

• 16-lead SOIC_W package with 7.8 mm minimum creepage

• 8-lead SOIC_IC package with 8.3 mm minimum creepage

• High temperature operation: 125°C maximum

• Safety and regulatory approvalsUL recognition (pending)3000 V rms for 1 minute per UL 1577CSA Component Acceptance Notice 5A (pending)VDE certificate of conformity (pending)VDE V 0884-10VIORM= 565 V peakCQC certification per GB4943.1-2011 (pending)

• UL recognition (pending)3000 V rms for 1 minute per UL 1577

• 3000 V rms for 1 minute per UL 1577

• CSA Component Acceptance Notice 5A (pending)

• VDE certificate of conformity (pending)VDE V 0884-10VIORM= 565 V peak

• VDE V 0884-10

• VIORM= 565 V peak

• CQC certification per GB4943.1-2011 (pending)

Description

The ADuM5028 is anisoPower®, integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc.,iCoupler®technology, the dc-to-dc converter provide regulated, isolated power that is below CISPR22 Class B limits at full load on a 2-layer PCB with ferrites.The ADuM5028 eliminates the need to design and build an isolated dc-to-dc converter in 300 mW applications. TheiCoupler chip scale transformer technology is used for the magnetic components of the dc-to-dc converter. The result is a small form factor, isolated solution.The ADuM5028 isolated dc-to-dc converters provide a space saving 8 pin wide body SOIC.ApplicationsRS-485/RS-422/CAN transceiver powerPower supply startup bias and gate drivesIsolated sensor interfaces
