MLX81115 Series

Catalog

BOARD EVAL MLX81115 A2 LIN RGB

Part	Supplied Contents	Utilized IC / Part	Contents	Current - Output / Channel	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Applications	Supplier Device Package	Core Processor	Program Memory Type	Mounting Type	RAM Size	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Voltage - Supply [Max]	Voltage - Supply [Min]	Controller Series	RAM Size

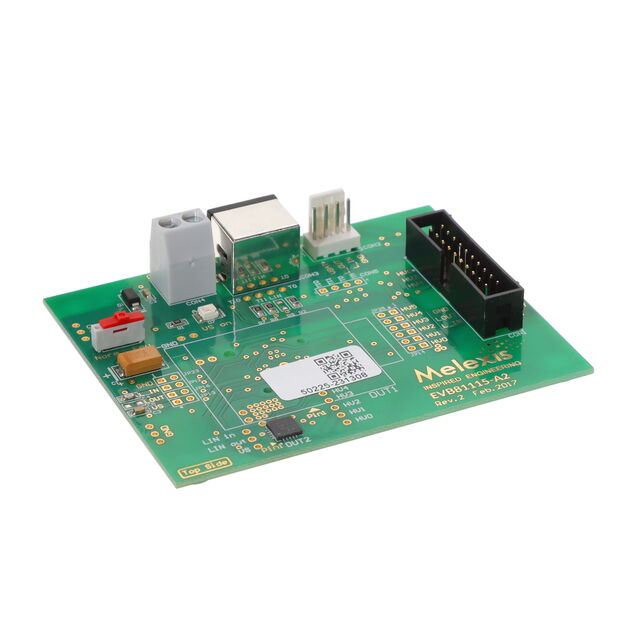

Melexis Technologies NV EVB81115-A2	Board(s)	MLX81115	Board(s)	48 mA	6 Non-Isolated Outputs	18 V	5.5 V
Melexis Technologies NV MLX81115KLQ-AXX-000-RE								12-VFDFN Exposed Pad	LIN Controller	12-DFN (4x4)	16-Bit RISC	FLASH ROM	Surface Mount	2 K	SPI	125 °C	-40 °C	6	18 V	5.5 V

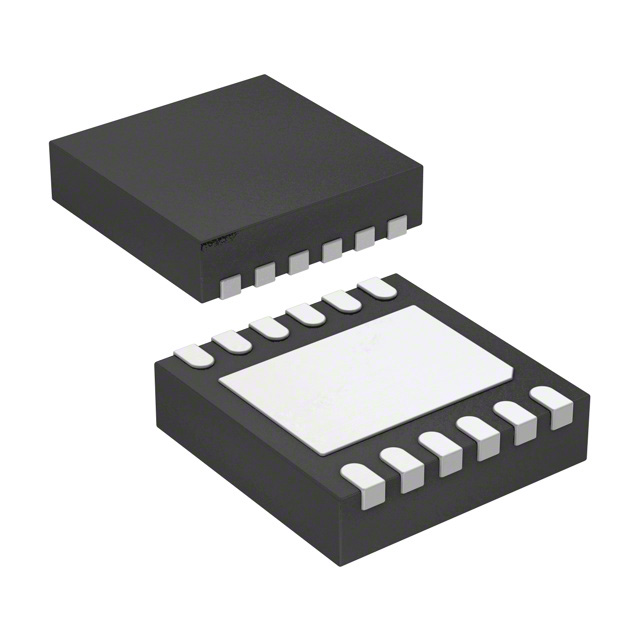

Melexis Technologies NV MLX81115KLQ-AAD-100-SP								12-VFDFN Exposed Pad	LIN Controller	12-DFN (4x4)	16-Bit RISC	FLASH ROM	Surface Mount		SPI	125 °C	-40 °C	6	18 V	5.5 V	MLX81115	2.5K x 8

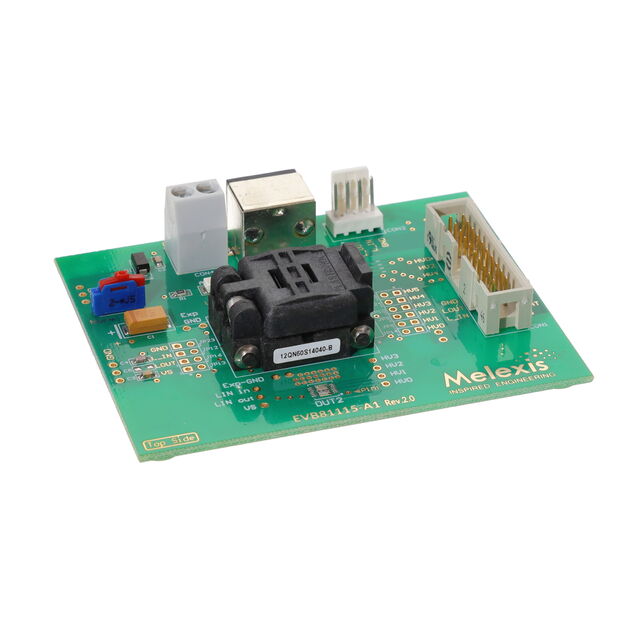

Melexis Technologies NV EVB81115-A1	Board(s)	MLX81115	Board(s)	48 mA	6 Non-Isolated Outputs	18 V	5.5 V
Melexis Technologies NV MLX81115 EMU								12-VFDFN Exposed Pad	LIN Controller	12-DFN (4x4)	16-Bit	FLASH ROM	Surface Mount		LIN	125 °C	-40 C	6			MLX8115	2.5K x 8
