TEP 40 Series

Catalog

DC DC CONVERTER 24V 40W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Applications	Supplier Device Package	Package / Case	Power (Watts)	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features

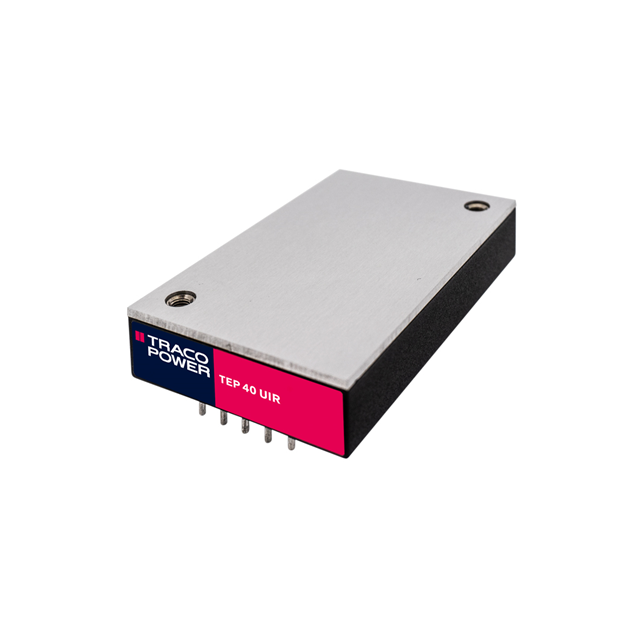

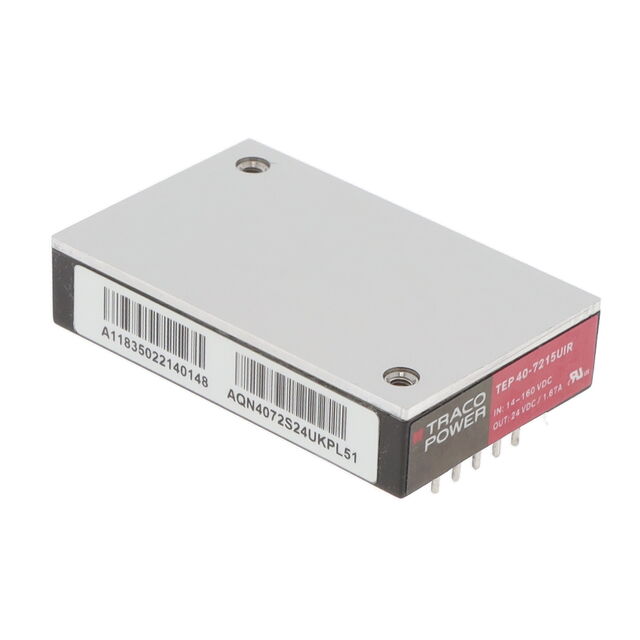

Traco Power TEP 40-7215UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	24 V	160 V	3000 V	1.67 A	90 %	14 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
Traco Power TEP 40-7211UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	5 V	160 V	3000 V	8 A	89 %	14 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
Traco Power TEP 40-7218UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	48 V	160 V	3000 V	830 mA	90 %	14 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
Traco Power TEP 40-7212UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	12 V	160 V	3000 V	3.33 A	91 %	14 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
Traco Power TEP 40-3613UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	15 V	75 V	2250 VDC	2.67 A	91 %	9 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
Traco Power TEP 40-3615UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	24 V	75 V	2250 VDC	1.67 A	90 %	9 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
Traco Power TEP 40-3612UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	12 V	75 V	2250 VDC	3.33 A	91 %	9 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
Traco Power TEP 40-3618UIR	85 °C	-40 C	Through Hole	Isolated Module	ITE (Commercial) Railway	Quarter Brick	Quarter Brick	40 W	1	48 V	75 V	2250 VDC	830 mA	90 %	9 V	CB cURus	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Adjustable Output Remote On/Off
