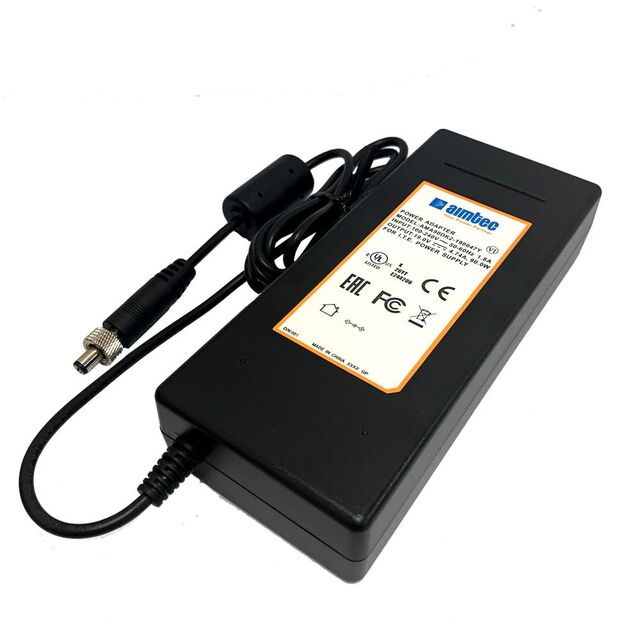

AMA90 Series

Manufacturer: aimtec

Catalog

AC/DC DESKTOP ADAPTER 19V 90W

Part	Weight [custom]	Weight [custom]	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Input Type	Efficiency	Voltage - Output	Region Utilized	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Power (Watts)	Cord Length	Cord Length	No Load Power Consumption	Standard Number	Polarization	Form	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector	Output Connector [x]	Output Connector [diameter]	Current - Output (Max) [Max]
aimtec AMA90DK2-190047Y	1.087 lb	493 g	CE FCC UL	162 mm	6.38 in	33.8 mm	69.3 mm	1.33 in	2.73 "	Cord (Sold Separately)	CoC Tier 2 Level VI	19 V	International	ITE (Commercial)	264 VAC	90 VAC	IEC 320-C14	90 W	1.5 m	60.2 in	210 mW	62368-1	Positive Center	Desktop (Class I)	45 °C	0 °C	Barrel Plug Locking	9.5 mm	2.5 mm 5.5 mm
aimtec AMA90DR5-120075Y	1.087 lb	493 g	CE FCC UL	162 mm	6.38 in	33.8 mm	69.3 mm	1.33 in	2.73 "	Cord (Sold Separately)	CoC Tier 2 Level VI	12 V	International	ITE (Commercial)	264 VAC	90 VAC	IEC 320-C14	90 W	1.5 m	60.2 in	210 mW	62368-1	Positive Center	Desktop (Class I)	45 °C	0 °C	Barrel Plug	9.5 mm	2.5 mm 5.5 mm	7.5 A
