TEL 15 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W DC/DC CONVERTER ISOLATED, REGULATED IN A PCB MOUNT METAL CASE

Part	Size / Dimension	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Features	Power (Watts)	Number of Outputs	Type	Applications	Mounting Type	Package / Case	Voltage - Output 2	Current - Output (Max) [Max]
Traco Power TEL 15-4813	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.5 kV	80 °C	-40 C	75 V	1 A	15 V	36 V	86 %	SCP	15 W	1	Isolated Module	ITE (Commercial)	Through Hole	5-DIP Module 4 Leads
Traco Power TEL 15-2412	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.5 kV	80 °C	-40 C	36 V	1.25 A	12 V	18 V	86 %	SCP	15 W	1	Isolated Module	ITE (Commercial)	Through Hole	5-DIP Module 4 Leads
Traco Power TEL 15-1211	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.5 kV	80 °C	-40 C	18 V	3 A	5.1 V	9 V	81 %	SCP	15 W	1	Isolated Module	ITE (Commercial)	Through Hole	5-DIP Module 4 Leads

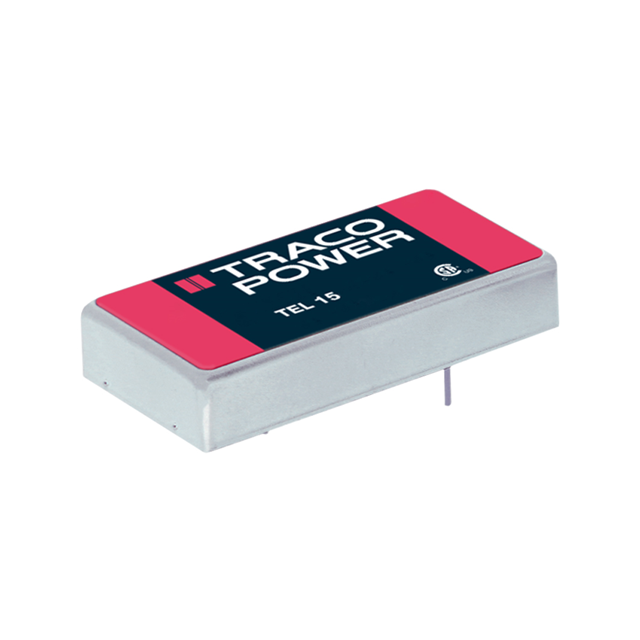

Traco Power TEL 15-2422	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.5 kV	80 °C	-40 C	36 V	625 mA	12 V	18 V	86 %	SCP	15 W	2	Isolated Module	ITE (Commercial)	Through Hole	5-DIP Module	-12 V	625 mA
Traco Power TEL 15-1212	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.5 kV	80 °C	-40 C	18 V	1.25 A	12 V	9 V	86 %	SCP	15 W	1	Isolated Module	ITE (Commercial)	Through Hole	5-DIP Module 4 Leads
Traco Power TEL 15-1213	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.5 kV	80 °C	-40 C	18 V	1 A	15 V	9 V	86 %	SCP	15 W	1	Isolated Module	ITE (Commercial)	Through Hole	5-DIP Module 4 Leads
