VND5004 Series

Catalog

DOUBLE 4MOHM HIGH SIDE DRIVER WITH ANALOG CURRENT SENSE FOR AUTOMOTIVE APPLICATIONS

Part	Current - Output (Max) [Max]	Voltage - Supply (Vcc/Vdd)	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Ratio - Input:Output	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Output Configuration	Output Type	Mounting Type	Number of Outputs	Fault Protection	Features	Voltage - Load [Max]	Voltage - Load [Min]	Switch Type	Input Type	Rds On (Typ)	Qualification	Grade

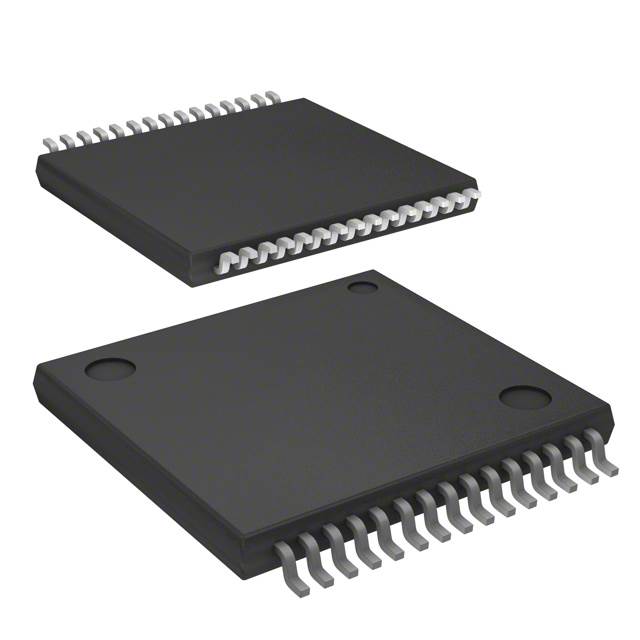

STMicroelectronics VND5004ASP30TR-E	70 A	Not Required	On/Off	-40 °C	150 °C	1:1	0.63 in	16 mm	30-PowerSOP	MultiPowerSO-30	High Side	N-Channel	Surface Mount	2	Current Limiting (Fixed) Over Temperature Over Voltage	Auto Restart	27 V	4.5 V	General Purpose	Non-Inverting	4 mOhm
STMicroelectronics VND5004CSP30-E	70 A	Not Required	On/Off	-40 C	125 °C	1:1	0.63 in	16 mm	30-PowerSOP	MultiPowerSO-30	High Side	N-Channel	Surface Mount	2	Current Limiting (Fixed) Over Temperature Over Voltage UVLO	Auto Restart	27 V	4.5 V	General Purpose	Non-Inverting	4 mOhm
STMicroelectronics VND5004BSP30-E	70 A	Not Required	On/Off	-40 °C	150 °C	1:1	0.63 in	16 mm	30-PowerSOP	MultiPowerSO-30	High Side	N-Channel	Surface Mount	2	Current Limiting (Fixed) Over Temperature Over Voltage	Auto Restart	28 V	4.5 V	General Purpose	Non-Inverting	4 mOhm
STMicroelectronics VND5004DSP30-E	70 A	Not Required	On/Off	-40 °C	150 °C	1:1	0.63 in	16 mm	30-PowerSOP	MultiPowerSO-30	High Side	N-Channel	Surface Mount	2	Current Limiting (Fixed) Over Temperature Over Voltage UVLO	Auto Restart	28 V	4.5 V	General Purpose	Non-Inverting	4 mOhm	AEC-Q100	Automotive
STMicroelectronics VND5004DSP30TR-E	70 A	Not Required	On/Off	-40 °C	150 °C	1:1	0.63 in	16 mm	30-PowerSOP	MultiPowerSO-30	High Side	N-Channel	Surface Mount	2	Current Limiting (Fixed) Over Temperature Over Voltage UVLO	Auto Restart	28 V	4.5 V	General Purpose	Non-Inverting	4 mOhm	AEC-Q100	Automotive
STMicroelectronics VND5004ASP30-E	70 A	Not Required	On/Off	-40 °C	150 °C	1:1	0.63 in	16 mm	30-PowerSOP	MultiPowerSO-30	High Side	N-Channel	Surface Mount	2	Current Limiting (Fixed) Over Temperature Over Voltage	Auto Restart	27 V	4.5 V	General Purpose	Non-Inverting	4 mOhm
