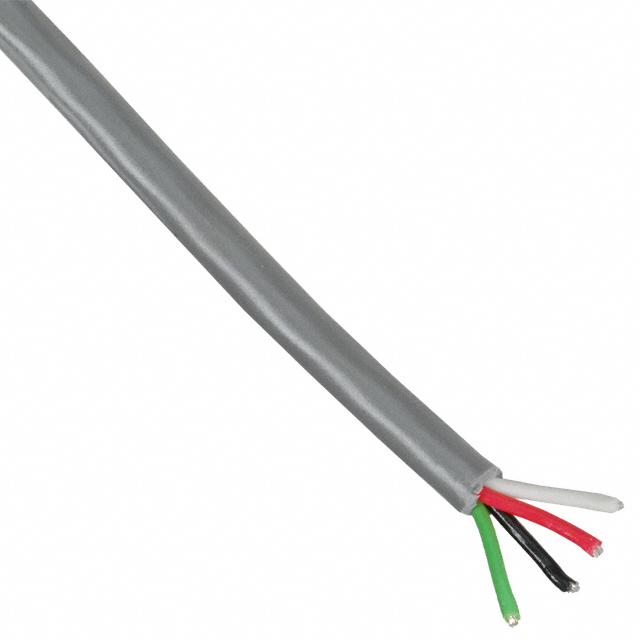

C4063 Series

Catalog

CABLE 4COND 22AWG GRAY 500'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Usage	Cable Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Conductor Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Number of Conductors	Jacket (Insulation) Material
Prysmian Group C4063A.18.10	0.189 in	4.8 mm	80 °C	-20 ░C	Gray	Communication Control	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	152.4 m	500 ft	Copper Tinned	22 AWG	30 AWG	7	300 VDC	4	Poly-Vinyl Chloride (PVC)
Prysmian Group C4063A.41.01	0.182 in	4.62 mm	80 °C	-20 ░C	Black		Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	304.8 m	1000 ft	Copper Annealed Tinned	22 AWG	30 AWG	7	300 VDC	4	Poly-Vinyl Chloride (PVC)
Prysmian Group C4063A.41.10	0.189 in	4.8 mm	80 °C	-20 ░C	Gray	Communication Control	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	304.8 m	1000 ft	Copper Tinned	22 AWG	30 AWG	7	300 VDC	4	Poly-Vinyl Chloride (PVC)
Prysmian Group C4063A.18.10	0.189 in	4.8 mm	80 °C	-20 ░C	Gray	Communication Control	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	152.4 m	500 ft	Copper Tinned	22 AWG	30 AWG	7	300 VDC	4	Poly-Vinyl Chloride (PVC)
Prysmian Group C4063A.41.10	0.189 in	4.8 mm	80 °C	-20 ░C	Gray	Communication Control	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	15.24 m 304.8 m	50 ft 1000 ft	Copper Tinned	22 AWG	30 AWG	7	300 VDC	4	Poly-Vinyl Chloride (PVC)
Prysmian Group C4063A.41.01	0.182 in	4.62 mm	80 °C	-20 ░C	Black		Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	304.8 m	1000 ft	Copper Annealed Tinned	22 AWG	30 AWG	7	300 VDC	4	Poly-Vinyl Chloride (PVC)
Prysmian Group C4063A.30.10	0.189 in	4.8 mm	80 °C	-20 ░C	Gray	Communication Control	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	304.8 m	1000 ft	Copper Tinned	22 AWG	30 AWG	7	300 VDC	4	Poly-Vinyl Chloride (PVC)
