08015JE Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

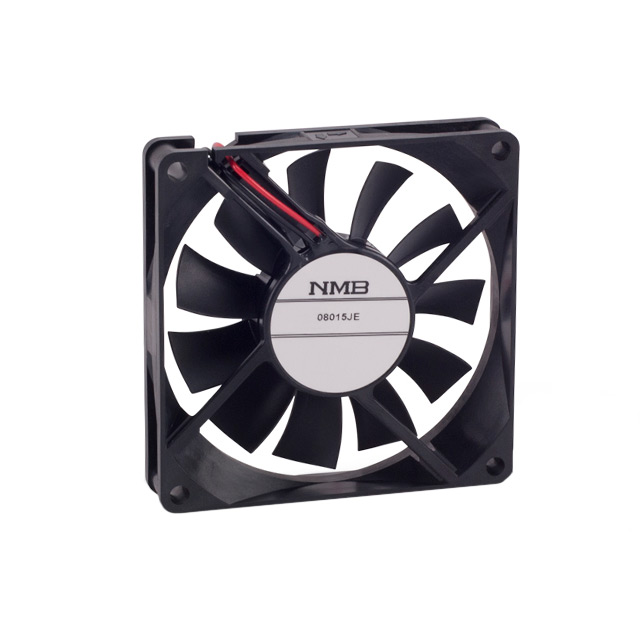

DC AXIAL FAN, 12 V, SQUARE, 80 MM, 15 MM, BALL BEARING, 22.25 CFM
| Part | Material - Frame | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Fan Type | Features | Static Pressure | Static Pressure | Width [y] | Voltage - Rated | Power (Watts) | Termination | RPM | Size / Dimension [z] | Size / Dimension [x] | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | 70000 Hrs | 7 V | 13.2 VDC | Plastic | 100 mA | 22.2 CFM | 0.622 m³/min | 40 °C | -40 C | 32 dB | Tubeaxial | Auto Restart | 0.1 in H2O | 24.9 Pa | 15 mm | 12 VDC | 1.2 W | 2 Wire Leads | 2800 RPM | 80 mm | 80 mm | Ball |
