TSV992 Series

Catalog

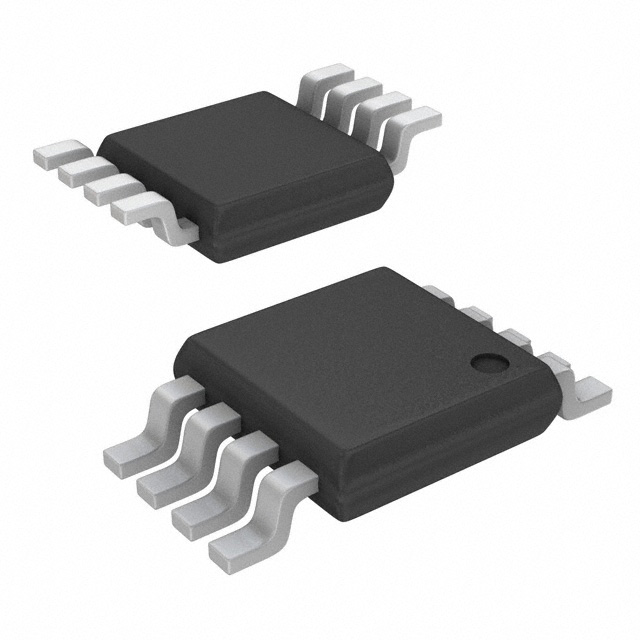

OP AMP DUAL GP R-R I/O 5.5V 8-PIN MSOP T/R

Part	Voltage - Supply Span (Min) [Min]	Supplier Device Package	Current - Supply	Current - Output / Channel	Grade	Slew Rate	Voltage - Input Offset	Package / Case	Package / Case	Current - Input Bias	Qualification	Mounting Type	Voltage - Supply Span (Max) [Max]	Number of Circuits	Amplifier Type	Output Type	Gain Bandwidth Product	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case
STMicroelectronics TSV992IYST	2.5 V	8-MiniSO	820 µA	35 mA	Automotive	10 V/çs	100 çV	8-MSOP 8-TSSOP	0.118 in 3 mm Width	1 pA	AEC-Q100	Surface Mount	5.5 V	2	General Purpose	Rail-to-Rail	20 MHz	125 °C	-40 C
STMicroelectronics TSV992IDT	2.5 V	8-SOIC	820 µA	35 mA	Automotive	10 V/çs	100 çV	8-SOIC		1 pA	AEC-Q100	Surface Mount	5.5 V	2	General Purpose	Rail-to-Rail	20 MHz	125 °C	-40 C	0.154 in	3.9 mm
STMicroelectronics TSV992AIST	2.5 V	8-MiniSO	820 µA	35 mA	Automotive	10 V/çs	100 çV	8-MSOP 8-TSSOP	0.118 in 3 mm Width	1 pA	AEC-Q100	Surface Mount	5.5 V	2	General Purpose	Rail-to-Rail	20 MHz	125 °C	-40 C
STMicroelectronics TSV992AID	2.5 V	8-SOIC	820 µA	35 mA	Automotive	10 V/çs	100 çV	8-SOIC		1 pA	AEC-Q100	Surface Mount	5.5 V	2	General Purpose	Rail-to-Rail	20 MHz	125 °C	-40 C	0.154 in	3.9 mm
STMicroelectronics TSV992AIDT	2.5 V	8-SOIC	820 µA	35 mA	Automotive	10 V/çs	100 çV	8-SOIC		1 pA	AEC-Q100	Surface Mount	5.5 V	2	General Purpose	Rail-to-Rail	20 MHz	125 °C	-40 C	0.154 in	3.9 mm
