01311 Series

Catalog

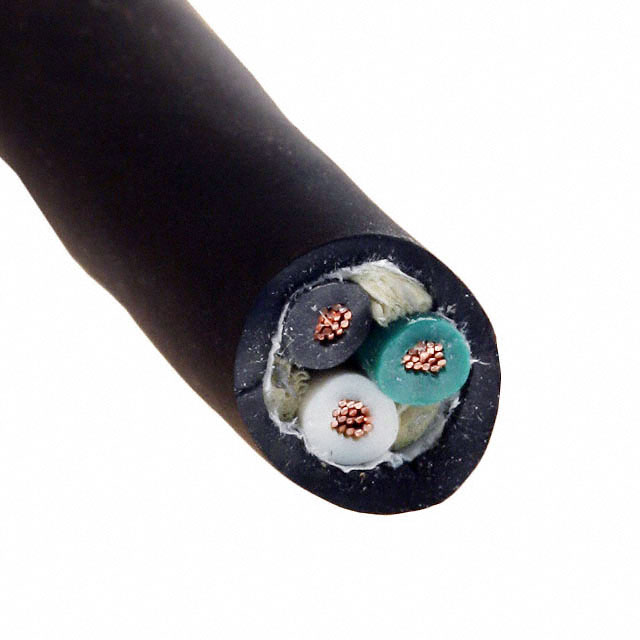

CABLE 3COND 18AWG BLACK

Part	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Length	Length	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Length [x]	Length [x]
Prysmian Group 01311.44.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC	2500 ft	762 m	Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare
Prysmian Group 01311.35.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC	250 ft	76.2 m	Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Annealed Bare
Prysmian Group 01311.46.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC			Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare
Prysmian Group 01311.35T.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC	250 ft	76.2 m	Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare
Prysmian Group 01311.35.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC	250 ft	76.2 m	Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Annealed Bare
Prysmian Group 01311.R5.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC	250 ft	76.2 m	Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare
Prysmian Group 01311.99.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC			Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare
Prysmian Group 01311.44.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC	2500 ft	762 m	Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare
Prysmian Group 01311.46.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC			Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare
Prysmian Group 01311.41T.01	Ethylene Propylene Terpolymer Rubber (EPDM)	0.305 in	7.75 mm	Carolprene	Black	3	16	30 AWG	300 VDC	50 ft 250 ft 1000 ft	15.24 m 76.2 m 304.8 m	Multi-Conductor	0.03 in	0.762 mm	18 AWG	90 °C	-40 C	Copper Bare	100 ft	30.5 m
