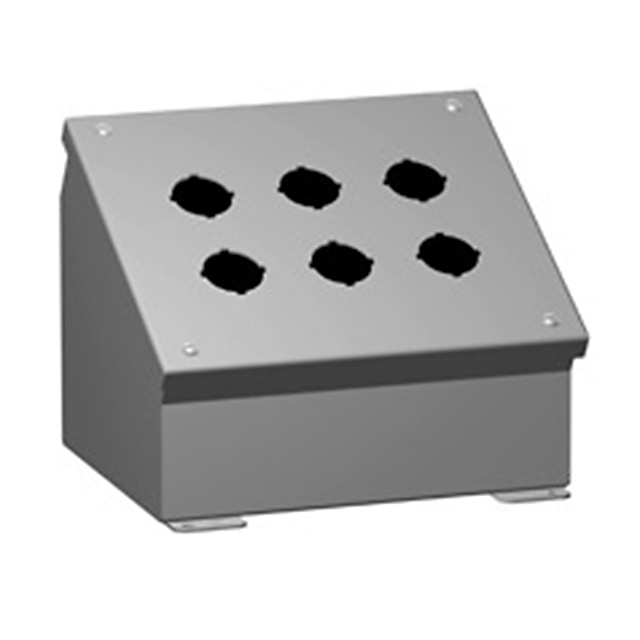

1490 Series

Catalog

MILD STEEL PUSHBUTTON ENCLOSURES 30.5MM HOLES

Part	Weight	Weight	Container Type	Design	Thickness	Color	Features	Features	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Material	Weight [custom]	Weight [custom]	Size / Dimension [x]	Size / Dimension [y]	Height	Height
Hammond Manufacturing 1490D4	2.7 kg	6 lbs	Console	Cover Included Slanted Top	14 Gauge	Gray	Pushbutton Holes - 4 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	10 in	254 mm	88.9 mm	3.5 "	4.88 in	123.95 mm	226 cm²	35 in²	Metal Steel
Hammond Manufacturing 1490MD3			Console	Cover Included Slanted Top	14 Gauge	Gray	Pushbutton Holes - 3 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508		196.85 mm	3.5 in		4.88 in	123.95 mm	175 cm²	27.1 in²	Metal Steel	2.3 kg	5 lbs	196.85 mm	88.9 mm
Hammond Manufacturing 1490G8			Console	Hinged Lid Slanted Top	14 Gauge	Gray	Pushbutton Holes - 8 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	10.75 in	273.05 mm	184.15 mm	7.25 "			503 cm²	77.9 in²	Metal Steel	4.1 kg	9 lbs			171.45 mm	6.75 in
Hammond Manufacturing 1490MG12	5 kg	11 lbs	Console	Hinged Lid Slanted Top	14 Gauge	Gray	Pushbutton Holes - 12 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508		15.25 in	7.25 in				716 cm²	111 in²	Metal Steel			387.35 mm	184.15 mm	171.45 mm	6.75 in
Hammond Manufacturing 1490MH9			Console	Hinged Lid Slanted Top	14 Gauge	Gray	30° 60° Pushbutton Holes - 9 Slope		IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	9.5 in	241.3 mm	215.9 mm	8.5 in	7.88 in	200.15 mm	521 cm²	80.8 in²	Metal Steel	4.1 kg	9 lbs
Hammond Manufacturing 1490MD1	907.2 g	2 lbs	Console	Cover Included Slanted Top	14 Gauge	Gray	Pushbutton Holes - 1 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	3.5 "	88.9 mm	82.55 mm	3.25 "	4.88 in	123.95 mm	74 cm²	11.5 in²	Metal Steel
Hammond Manufacturing 1490J12			Console	Hinged Lid Slanted Top	14 Gauge	Gray	Pushbutton Holes - 12 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	11.75 in	298.45 mm		8.5 in	9 in	228.6 mm			Metal Steel	5.9 kg	13 lbs		215.9 mm
Hammond Manufacturing 1490D3			Console	Cover Included Slanted Top	14 Gauge	Gray	Pushbutton Holes - 3 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508		196.85 mm	3.5 in		4.88 in	123.95 mm	175 cm²	27.1 in²	Metal Steel	2.3 kg	5 lbs	196.85 mm	88.9 mm
Hammond Manufacturing 1490MJ12			Console	Hinged Lid Slanted Top	14 Gauge	Gray	Pushbutton Holes - 12 Slope	30 ° 60 °	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	11.75 in	298.45 mm		8.5 in	9 in	228.6 mm			Metal Steel	5.9 kg	13 lbs		215.9 mm
Hammond Manufacturing 1490G6	3.2 kg	7 lbs	Console	Hinged Lid Slanted Top	14 Gauge	Gray	30° 60° Pushbutton Holes - 6 Slope		IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	8.5 "	215.9 mm	184.15 mm	7.25 "			397 cm˛	61.5 in²	Metal Steel					171.45 mm	6.75 in
