DSC612 Series

Catalog

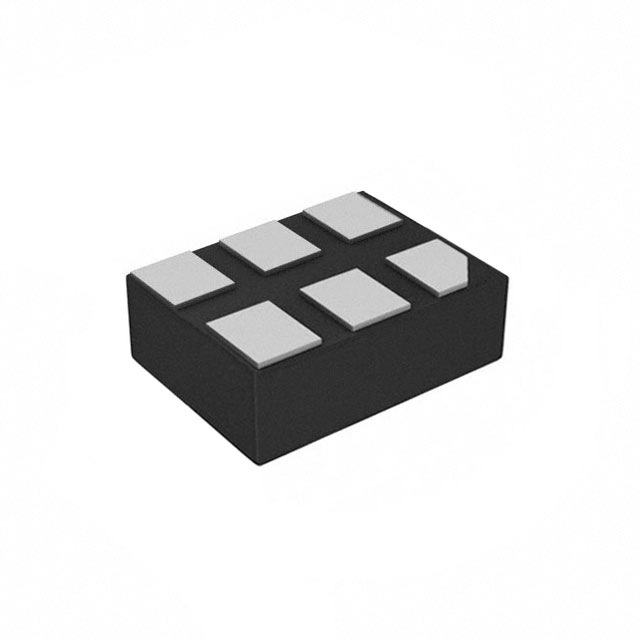

2-OUTPUT MEMS CLOCK GENERATOR, 1.6X1.2MM, 6-PIN, 20PPM, -40 TO 85C 6 VFLGA 1.6X1.2X0.89MM BAG ROHS COMPLIANT: YES

Part	Package / Case	Height [z]	Height [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Disable) (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Output	Frequency - Output 2	Function	Frequency Stability	Base Resonator	Current - Supply (Max) [Max]	Frequency - Output 1	Ratio - Input:Output [custom]	Supplier Device Package	Mounting Type	Divider/Multiplier	Number of Circuits
Microchip Technology DSC612PI3A-010T	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.047 in	1.2 mm	1.6 mm	0.063 in	XO (Standard)	85 °C	-40 °C	LVCMOS	26 MHz	Enable/Disable	20 ppm	MEMS	6 mA	19.2 MHz
Microchip Technology DSC612RL2A-0137T	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.079 in	2 mm	2.5 mm	0.098 "	XO (Standard)	105 ░C	-40 °C	LVCMOS	27 MHz	Enable/Disable	25 ppm	MEMS	6 mA
Microchip Technology DSC612RA3A-010ST	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V		0.079 in	2 mm	2.5 mm	0.098 "	XO (Standard)	125 °C	-40 °C	LVCMOS	26 MHz	Enable/Disable	20 ppm	MEMS	6 mA	25 MHz
Microchip Technology DSC612PI3A-010TT	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.047 in	1.2 mm	1.6 mm	0.063 in	XO (Standard)	85 °C	-40 °C	LVCMOS	26 MHz	Enable/Disable	20 ppm	MEMS	6 mA	19.2 MHz
Microchip Technology DSC612PI3A-010TB	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.047 in	1.2 mm	1.6 mm	0.063 in	XO (Standard)	85 °C	-40 °C	LVCMOS	26 MHz	Enable/Disable	20 ppm	MEMS	6 mA	19.2 MHz
Microchip Technology DSC612PL2A-0132T	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.047 in	1.2 mm	1.6 mm	0.063 in	XO (Standard)	105 ░C	-40 °C	LVCMOS	25 MHz		25 ppm	MEMS	6 mA	20 MHz
Microchip Technology DSC612NA2A-010JB	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.063 in	1.6 mm	2 mm	0.079 in	XO (Standard)	125 °C	-40 °C	LVCMOS	32.768 kHz	Enable/Disable	25 ppm	MEMS	6 mA	24 MHz
Microchip Technology DSC612PA3A-0119T	6-VFLGA			3.63 V	1.71 V						Clock Generator	125 °C	-40 °C	LVCMOS							2:2	6-VFLGA (1.6x1.2)	Surface Mount	Yes/No	1
Microchip Technology DSC612RL3A-010K	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.079 in	2 mm	2.5 mm	0.098 "	XO (Standard)	105 ░C	-40 °C	LVCMOS	32.768 kHz	Enable/Disable	20 ppm	MEMS	6 mA	38.4 MHz
Microchip Technology DSC612NI3A-010TT	6-VFLGA	0.035 in	0.89 mm	3.63 V	1.71 V	1.5 µA	0.063 in	1.6 mm	2 mm	0.079 in	XO (Standard)	85 °C	-40 °C	LVCMOS	26 MHz	Enable/Disable	20 ppm	MEMS	6 mA	19.2 MHz
