TDN 3 Series

Catalog

DC DC CONVERTER 9V 3W

Part	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Isolation	Applications	Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Power (Watts)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power TDN 3-1219WI	81 %	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	9 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	18 V	4.5 V	333 mA	Through Hole	3 W	Isolated Module	70 °C	-40 C	7-DIP Module 6 Leads	1
Traco Power TDN 3-4810WI	77 %	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	3.3 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	75 V	18 V	700 mA	Through Hole	2.3 W	Isolated Module	70 °C	-40 C	7-DIP Module 6 Leads	1
Traco Power TDN 3-4812WI	83 %	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	12 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	75 V	18 V	250 mA	Through Hole	3 W	Isolated Module	70 °C	-40 C	7-DIP Module 6 Leads	1
Traco Power TDN 3-4815WI		0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	24 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	75 V	18 V	125 mA	Through Hole	3 W	Isolated Module	70 °C	-40 C	7-DIP Module 6 Leads	1

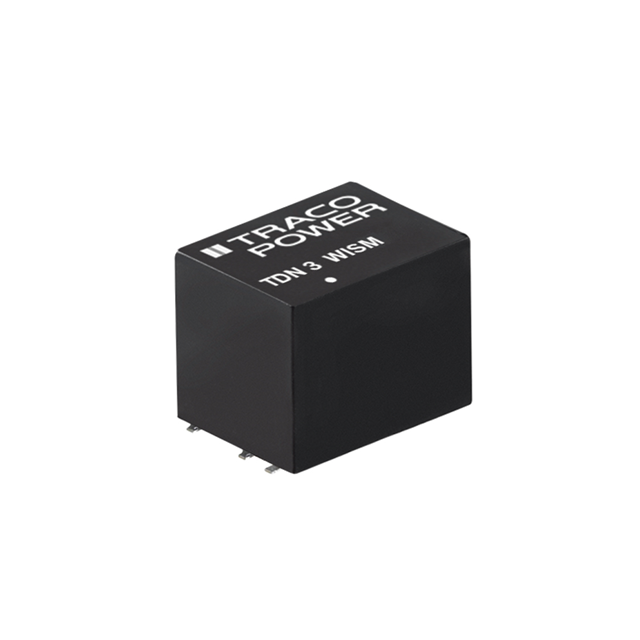

Traco Power TDN 3-1212WISM	83 %	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	12 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	18 V	4.5 V	250 mA	Surface Mount	3 W	Isolated Module	70 °C	-40 C	7-SMD Module 6 Leads	1
Traco Power TDN 3-2411WISM	80 %	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	5 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	36 V	9 V	600 mA	Surface Mount	3 W	Isolated Module	70 °C	-40 C	7-SMD Module 6 Leads	1
Traco Power TDN 3-2423WI		0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	15 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	36 V	9 V		Through Hole	3 W	Isolated Module	70 °C	-40 C	7-DIP Module 6 Leads	2	100 mA	100 mA	-15 V
Traco Power TDN 3-2410WISM	77 %	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	3.3 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	36 V	9 V	700 mA	Surface Mount	2.3 W	Isolated Module	70 °C	-40 C	7-SMD Module 6 Leads	1
Traco Power TDN 3-1215WI		0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	24 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	18 V	4.5 V	125 mA	Through Hole	3 W	Isolated Module	70 °C	-40 C	7-DIP Module 6 Leads	1
Traco Power TDN 3-4823WISM		0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	15 V	1.6 kV	ITE (Commercial)	Remote On/Off SCP	75 V	18 V		Surface Mount	3 W	Isolated Module	70 °C	-40 C	7-SMD Module 6 Leads	2	100 mA	100 mA	-15 V
