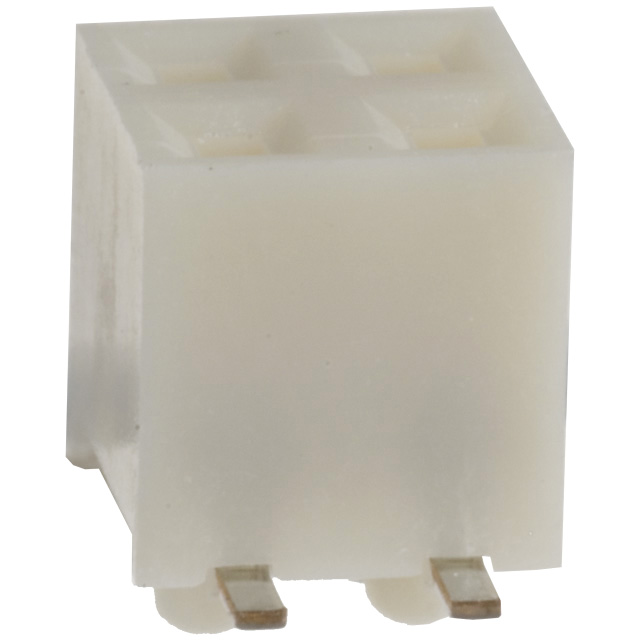

A3A-4DA Series

Catalog

CONN RCPT 4POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Material	Contact Material	Contact Shape	Insulation Height	Insulation Height	Number of Positions Loaded	Fastening Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Termination	Contact Type	Insulation Color	Mounting Type	Mated Stacking Heights	Number of Rows [custom]	Features	Contact Finish - Mating	Style	Number of Positions	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric Co Ltd A3A-4DA-2SV	39.4 çin	1 çm	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Square	0.165 in	4.2 mm	All	Push-Pull	200 VAC	8 µin	0.203 µm	Tin	Receptacle	Solder	Female Socket	Brown	Surface Mount	5.1 mm 6 mm	2	Board Guide	Gold	Board to Board Cable	4	0.079 "	2 mm	2 mm	0.079 in	UL94 V-0	-55 C	85 °C
Hirose Electric Co Ltd A3A-4DA-2SV(71)	39.4 çin	1 çm	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Square	0.165 in	4.2 mm	All	Push-Pull	200 VAC	8 µin	0.203 µm	Tin	Receptacle	Solder	Female Socket	Brown	Surface Mount	5.1 mm 6 mm	2	Board Guide	Gold	Board to Board Cable	4	0.079 "	2 mm	2 mm	0.079 in	UL94 V-0	-55 C	85 °C
