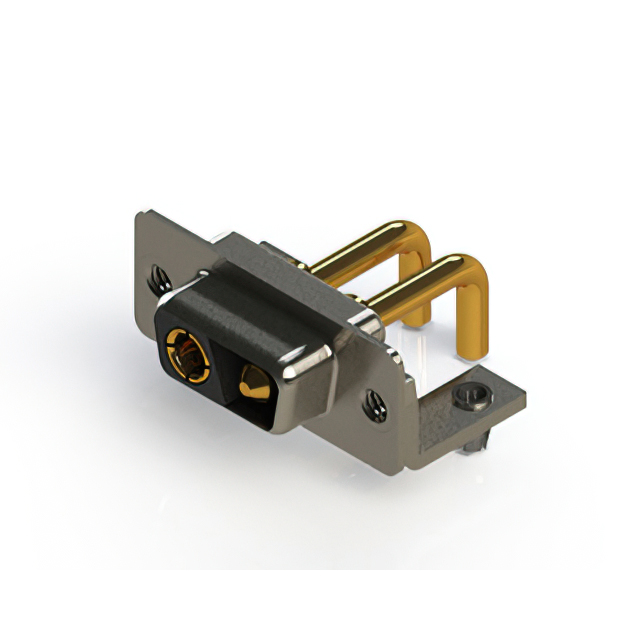

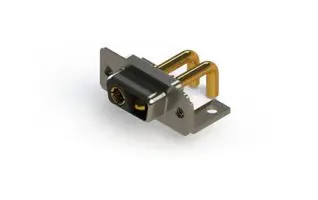

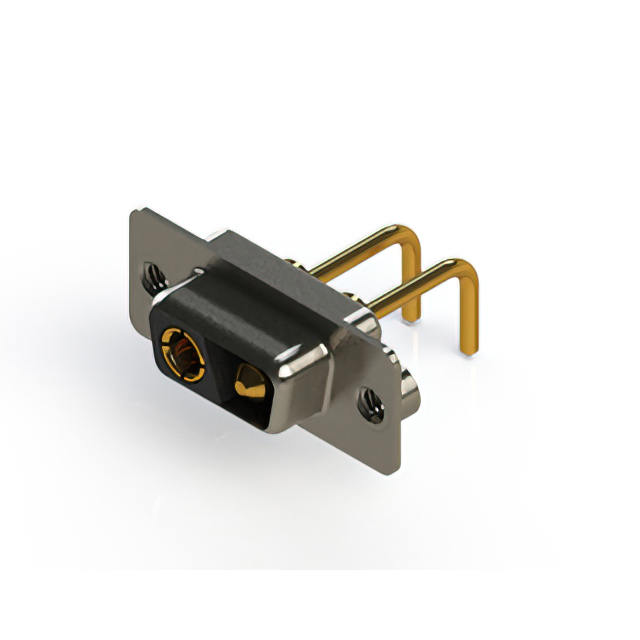

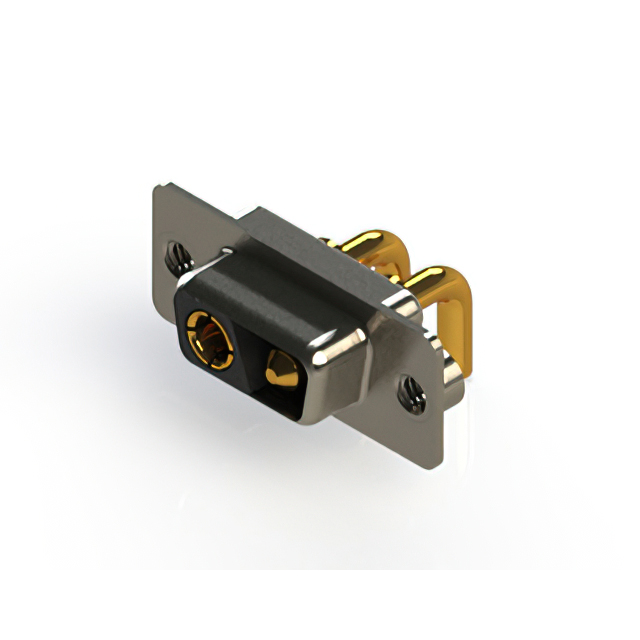

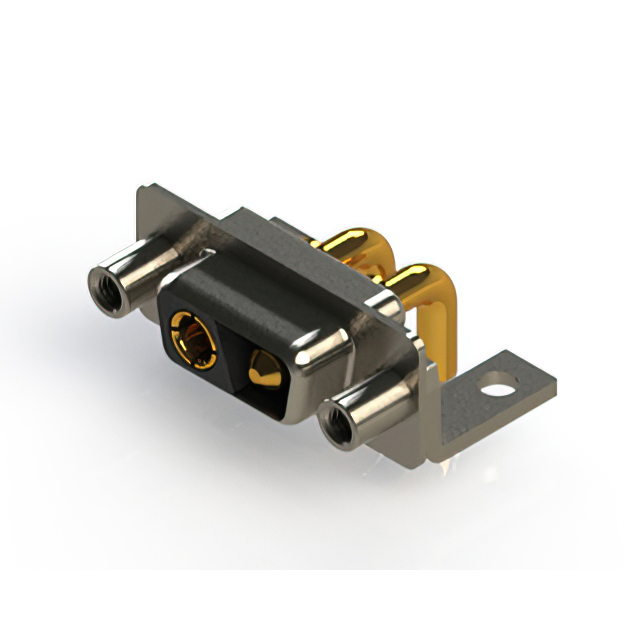

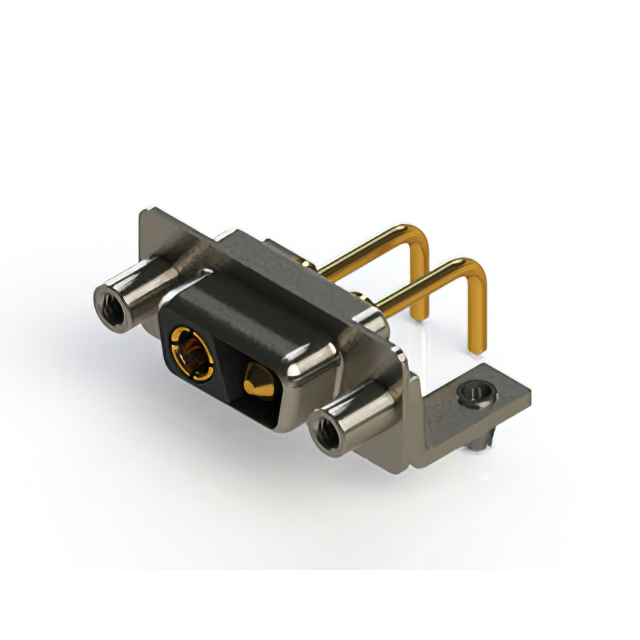

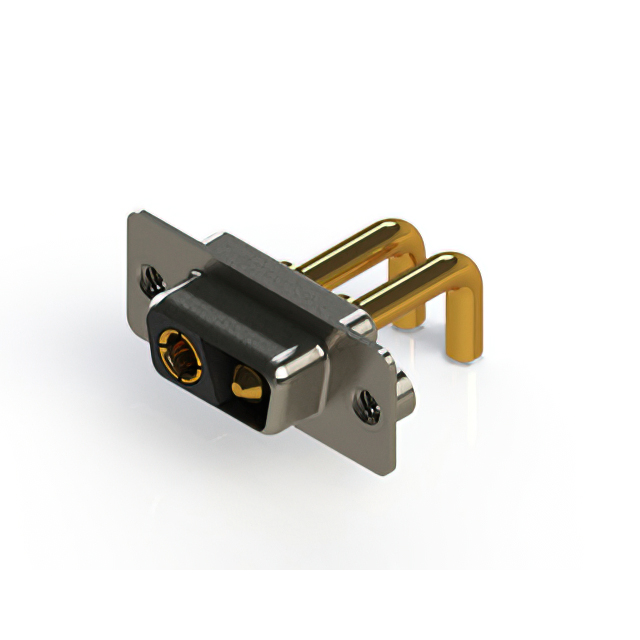

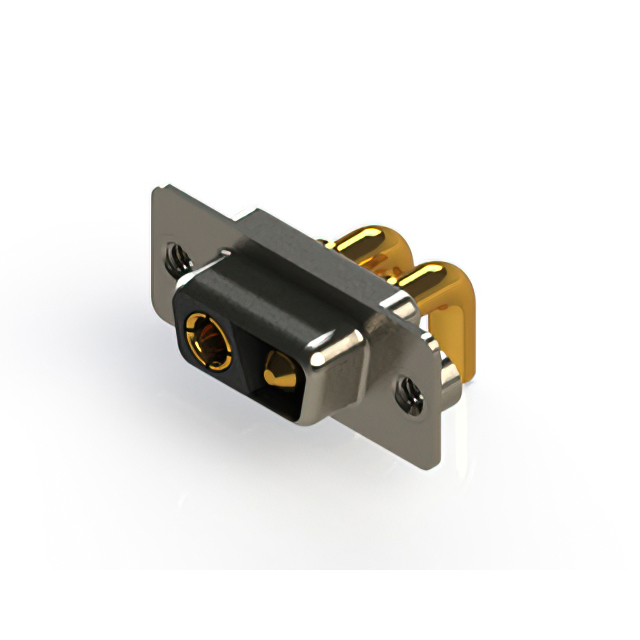

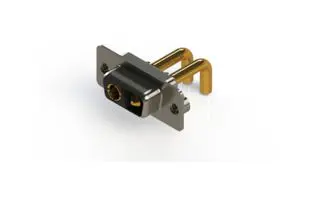

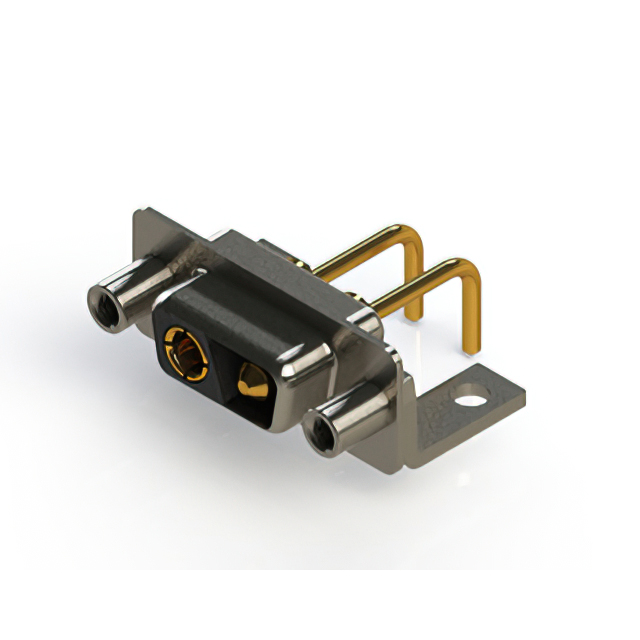

630-2WK Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB MIXED CONTACT CONNECTORS RIGHT-ANGLE POWER COMBO D-SUB CONNECTOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Voltage Rating | Number of Positions | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Current Rating (Amps) | Connector Style | Mounting Type | Shell Size, Connector Layout | Connector Type | Contact Finish | Material Flammability Rating | Termination | Flange Feature | Shell Material, Finish | Backset Spacing | Backset Spacing | Flange Feature | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 30 Áin | 0.76 Ám | 1 | 20 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | Board Side (M3) | Nickel Plated Steel | 0.52 " | 13.2 mm | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 1 | 40 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | Housing/Shell | Nickel Plated Steel | 0.52 " | 13.2 mm | 4-40 | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 1 | 40 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | Board Side (M3) | 0.52 " | 13.2 mm | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 30 Áin | 0.76 Ám | 1 | 20 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | Housing/Shell | Nickel Plated Steel | 0.52 " | 13.2 mm | 4-40 | Board Lock Mounting Brackets | |
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 30 Áin | 0.76 Ám | 1 | 20 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | 4-40 | Nickel Plated Steel | 0.52 " | 13.2 mm | Board Lock | ||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Coax | 1 | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | Housing/Shell | Nickel Plated Steel | 0.37 in | 9.4 mm | 4-40 | Flash | Board Lock Mounting Brackets | |||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 1 | 30 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | Board Side (M3) | 0.52 " | 13.2 mm | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 1 | 10 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | Board Side (M3) | Nickel Plated Steel | 0.52 " | 13.2 mm | Flash | ||||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 30 Áin | 0.76 Ám | 1 | 10 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | M3 | Nickel Plated Steel | 0.52 " | 13.2 mm | Mounting Brackets | ||
 EDAC Inc. | -55 C | 125 °C | Polyester Thermoplastic | Copper Alloy | Black | 125 VDC | 2 | Power | 30 Áin | 0.76 Ám | 1 | 10 A | Combo D-Sub | Right Angle Through Hole | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Receptacle Female Sockets and Male Pins | Gold | UL94 V-0 | Solder | 4-40 | Nickel Plated Steel | 0.52 " | 13.2 mm | Board Lock Mounting Brackets |
