ADG798 Series
Manufacturer: Analog Devices
Beta
⌘K

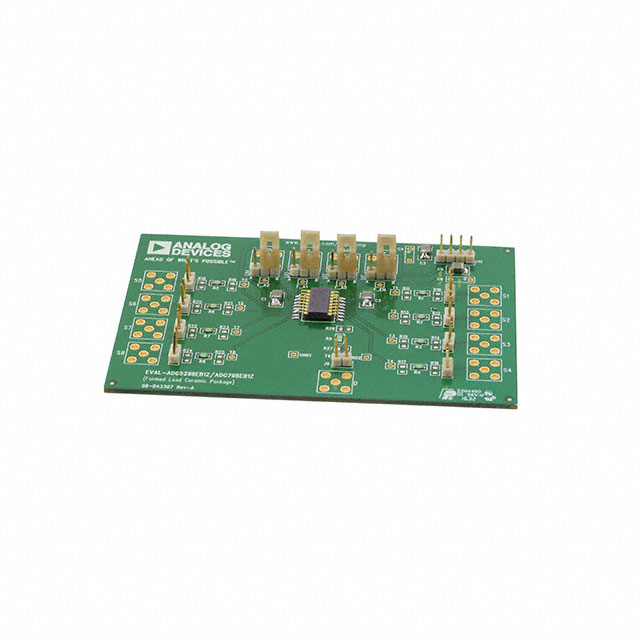

EVAL BOARD FOR ADG798
| Part | Utilized IC / Part | Supplied Contents | Type | Secondary Attributes | Function | Contents | Current - Leakage (IS(off)) (Max) | Crosstalk | On-State Resistance (Max) [Max] | -3db Bandwidth | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] | Channel-to-Channel Matching (ΔRon) | Package / Case | Supplier Device Package | Multiplexer/Demultiplexer Circuit | Charge Injection | Mounting Type | Voltage - Supply, Dual (V±) [Min] | Voltage - Supply, Dual (V±) [Max] | Switch Time (Ton, Toff) (Max) [custom] | Switch Time (Ton, Toff) (Max) [custom] | Voltage - Supply, Single (V+) [Max] | Voltage - Supply, Single (V+) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | ADG798 | Board(s) | Interface | On-Board Test Points | 8:1 Multiplexer | Board(s) | |||||||||||||||||||||
 Analog Devices | 180 nA | -60 dB | 10 Ohms | 55 MHz | 85 pF | 13 pF | 1.25 Ohm | 16-CFlatPack | 16-CFlatPack | 8:1 | 3 pC | Surface Mount | -2.5 V | 2.5 V | 20 ns | 30 ns | 5.5 V | 3 V | -55 C | 210 °C | 1 |
