PQ12-30 Series

Catalog

PQ12-S MICRO LINEAR ACTUATOR

Part	Speed	Speed	Gear Reduction Ratio	Motor Type	Load Force (Dynamic)	Load Force (Dynamic)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Voltage - Rated	Duty Cycle	Ingress Protection	Construction	Features	Stroke Length	Stroke Length	Feedback Type

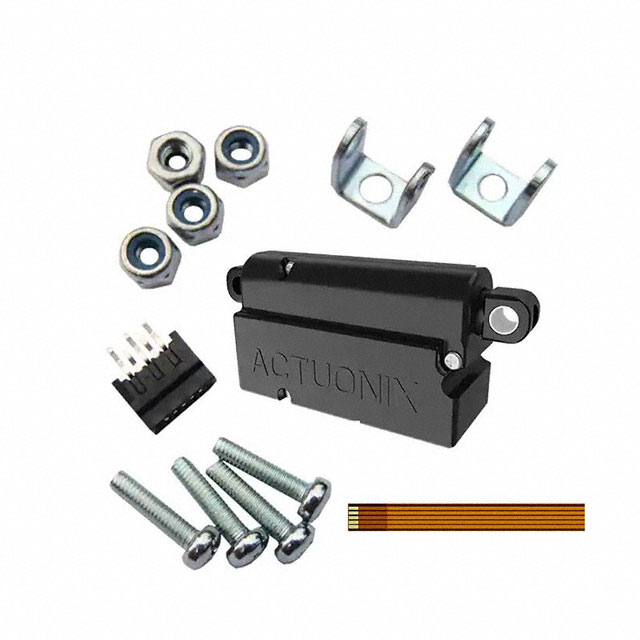

Actuonix Motion Devices Inc PQ12-30-12-S	28 mm/s	1.1 in/s	30	Brushed	4.05 lbf	18 N	Linear Actuator	50 °C	-10 °C	0.1 mm	12 VDC	20 %	IP54 - Dust Protected Water Resistant	Ball Screw	Limit Switches	20 mm	0.787 in

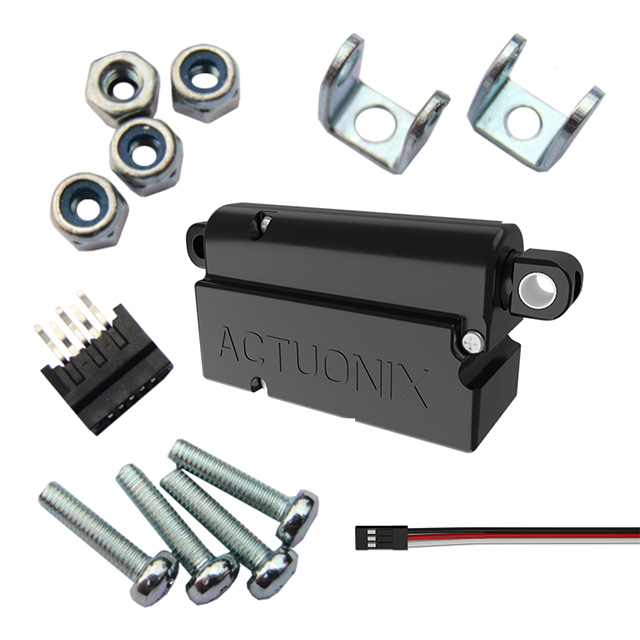

Actuonix Motion Devices Inc PQ12-30-6-R	28 mm/s	1.1 in/s	30	Brushed	4.05 lbf	18 N	Linear Actuator	50 °C	-10 °C	0.1 mm	6 VDC	20 %	IP54 - Dust Protected Water Resistant	Ball Screw	RC Linear Servo	20 mm	0.787 in

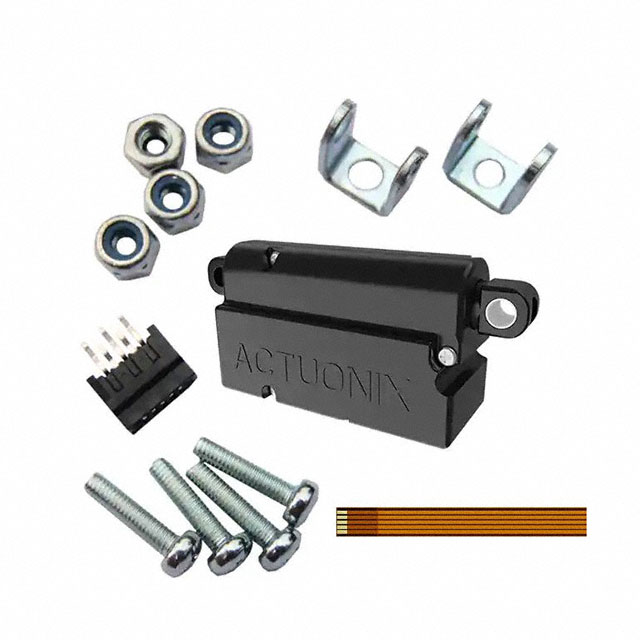

Actuonix Motion Devices Inc PQ12-30-12-P	28 mm/s	1.1 in/s	30	Brushed	4.05 lbf	18 N	Linear Actuator	50 °C	-10 °C	0.1 mm	12 VDC	20 %	IP54 - Dust Protected Water Resistant	Ball Screw		20 mm	0.787 in	Potentiometer
Actuonix Motion Devices Inc PQ12-30-6-P	28 mm/s	1.1 in/s	30	Brushed	4.05 lbf	18 N	Linear Actuator	50 °C	-10 °C	0.1 mm	6 VDC	20 %	IP54 - Dust Protected Water Resistant	Ball Screw		20 mm	0.787 in	Potentiometer
Actuonix Motion Devices Inc PQ12-30-6-S	28 mm/s	1.1 in/s	30	Brushed	4.05 lbf	18 N	Linear Actuator	50 °C	-10 °C	0.1 mm	6 VDC	20 %	IP54 - Dust Protected Water Resistant	Ball Screw	Limit Switches	20 mm	0.787 in
