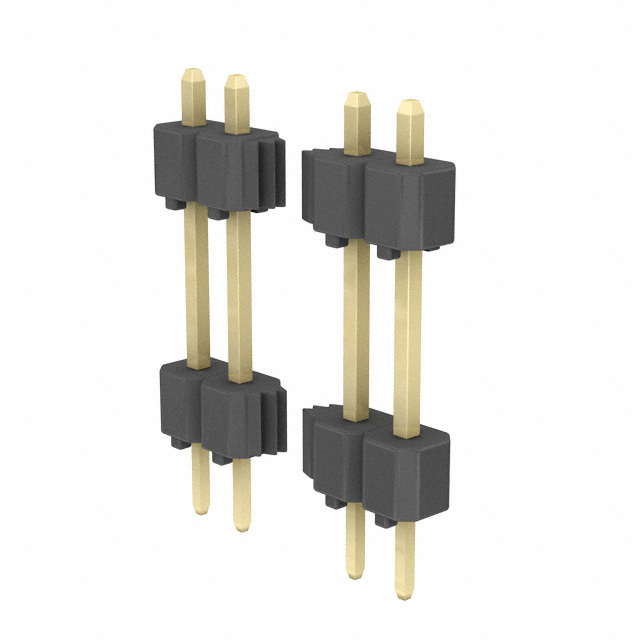

MDF7B Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS

Part	Contact Finish - Post	Insulation Material	Mounting Type	Termination	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Shrouding	Contact Material	Voltage Rating	Style	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Connector Type	Contact Type	Insulation Color	Number of Positions	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Number of Rows	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating
Hirose Electric Co Ltd MDF7B-20DP-2.54DSA(95)	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder	2	0.1 in	2.54 mm	Push-Pull	Unshrouded	Brass	250 VAC	Board to Cable/Wire	0.1 "	2.54 mm	3 A	Header	Male Pin	Black	20	Square	85 °C	-35 °C	UL94 V-0	All
Hirose Electric Co Ltd MDF7B-25P-2.54DSA(95)	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder				Push-Pull	Unshrouded	Brass	250 VAC	Board to Cable/Wire	0.1 "	2.54 mm	3 A	Header	Male Pin	Black	25	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22 mm	0.866 in	0.1 in	2.54 mm	1
Hirose Electric Co Ltd MDF7B-23P-2.54DSA(55)	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder				Push-Pull	Unshrouded	Brass	250 V		0.1 "	2.54 mm	3 A	Header	Male Pin	Black	23	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22.01 mm	0.867 in	0.1 in	2.54 mm	1	39.4 µin	1 µm
Hirose Electric Co Ltd MDF7B-9P-2.54DSA(01)		Polybutylene Terephthalate (PBT)	Through Hole	Solder				Push-Pull	Unshrouded	Brass	250 V		0.1 "	2.54 mm	3 A	Header	Male Pin	Black	9	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22.01 mm	0.867 in	0.1 in	2.54 mm	1			Gold
Hirose Electric Co Ltd MDF7B-22P-2.54DSA(95)	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder				Push-Pull	Unshrouded	Brass	250 VAC	Board to Cable/Wire	0.1 "	2.54 mm	3 A	Header	Male Pin	Black	22	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22 mm	0.866 in	0.1 in	2.54 mm	1
Hirose Electric Co Ltd MDF7B-15P-2.54DSA(95)	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder				Push-Pull	Unshrouded	Brass	250 VAC	Board to Cable/Wire	0.1 "	2.54 mm	3 A	Header	Male Pin	Black	15	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22 mm	0.866 in	0.1 in	2.54 mm	1
Hirose Electric Co Ltd MDF7B-16DP-2.54DSA		Polybutylene Terephthalate (PBT)	Through Hole	Solder	2	0.1 in	2.54 mm	Push-Pull	Unshrouded	Brass	250 V		0.1 "	2.54 mm	3 A	Header	Male Pin	Black	16	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22.01 mm	0.867 in	0.1 in	2.54 mm
Hirose Electric Co Ltd MDF7B-8P-2.54DSA(95)	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder				Push-Pull	Unshrouded	Brass	250 VAC	Board to Cable/Wire	0.1 "	2.54 mm	3 A	Header	Male Pin	Black	8	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22 mm	0.866 in	0.1 in	2.54 mm	1
Hirose Electric Co Ltd MDF7B-30DP-2.54DSA(96)		Polybutylene Terephthalate (PBT)	Through Hole	Solder	2	0.1 in	2.54 mm	Push-Pull	Unshrouded	Brass	250 VAC	Board to Cable/Wire	0.1 "	2.54 mm	3 A	Header	Male Pin	Black	30	Square	85 °C	-35 °C	UL94 V-0	All												Gold
Hirose Electric Co Ltd MDF7B-13P-2.54DSA(95)	Tin	Polybutylene Terephthalate (PBT)	Through Hole	Solder				Push-Pull	Unshrouded	Brass	250 VAC	Board to Cable/Wire	0.1 "	2.54 mm	3 A	Header	Male Pin	Black	13	Square	85 °C	-35 °C	UL94 V-0	All	16.47 mm	0.648 in	0.118 in	3 mm	22 mm	0.866 in	0.1 in	2.54 mm	1
