AD5546 Series

Current-Output Parallel-Input, 16-Bit Digital-to-Analog Converter

Catalog

Current-Output Parallel-Input, 16-Bit Digital-to-Analog Converter

Part	Operating Temperature [Max]	Operating Temperature [Min]	INL/DNL (LSB)	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Output Type	Settling Time	Reference Type	Package / Case	Package / Case	Package / Case [y]	Number of Bits	Architecture	Data Interface	Supplier Device Package	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Mounting Type	Sampling Rate (Per Second)	Utilized IC / Part	DAC Type	Number of DAC's	Supplied Contents
Analog Devices AD5546CRUZ-REEL7	125 °C	-40 °C	±1 (Max)	5.5 V	2.7 V	Current - Unbuffered	500 ns	External	28-TSSOP	0.173 in	4.4 mm	16	R-2R	Parallel	28-TSSOP	2.7 V	5.5 V	Surface Mount
Analog Devices AD5546BRUZ	125 °C	-40 °C	±1 (Max) ±2 (Max)	5.5 V	2.7 V	Current - Unbuffered	500 ns	External	28-TSSOP	0.173 in	4.4 mm	16	R-2R	Parallel	28-TSSOP	2.7 V	5.5 V	Surface Mount

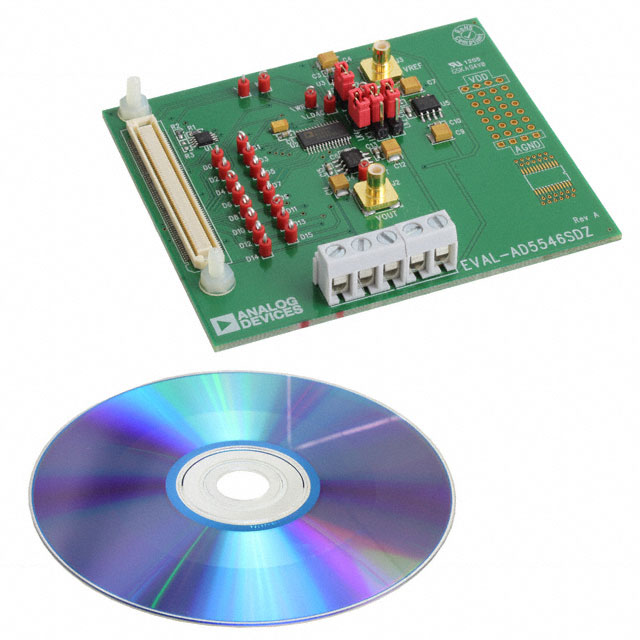

Analog Devices EVAL-AD5546SDZ							500 ns					16		Parallel					2M	AD5546	Current	1	Board(s)
Analog Devices AD5546CRUZ	125 °C	-40 °C	±1 (Max)	5.5 V	2.7 V	Current - Unbuffered	500 ns	External	28-TSSOP	0.173 in	4.4 mm	16	R-2R	Parallel	28-TSSOP	2.7 V	5.5 V	Surface Mount

Catalog

Current-Output Parallel-Input, 16-Bit Digital-to-Analog Converter

Key Features

• 16-bit resolution - AD5546

• 14-bit resolution - AD5556

• 2- or 4-quadrant multiplying DAC

• ±1 LSB DNL

• ±1 LSB INL

• Operating supply voltage: 2.7 V to 5.5 V

• Low noise: 12 nV/√Hz

• Low power: IDD= 10 μA

• 0.5 μs settling time

• Built-in RFBfacilitates current-to-voltage conversion

• Built-in 4-quadrant resistors allow 0 V to –10 V, 0 V to +10 V, or ±10 V outputs

• See data sheet for additional features

Description

The AD5546 /AD5556are precision 16-/14-bit, multiplying, low power, current output, parallel input D/A converters. They operate from a single 2.7 V to 5.5 V supply with ±10 V multiplying references for 4-quadrant outputs. Built-in 4-quadrant resistors facilitate the resistance matching and temperature tracking that minimize the number of components needed for multiquadrant applications. The feedback resistor (RFB) simplifies the I-V conversion with an external buffer. The AD5546/AD5556 are packaged in compact TSSOP-28 packages with operating temperatures from –40°C to +125°C.APPLICATIONSAutomatic test equipmentInstrumentationDigitally controlled calibrationDigital waveform generation
