A1-4PA-2 Series

Catalog

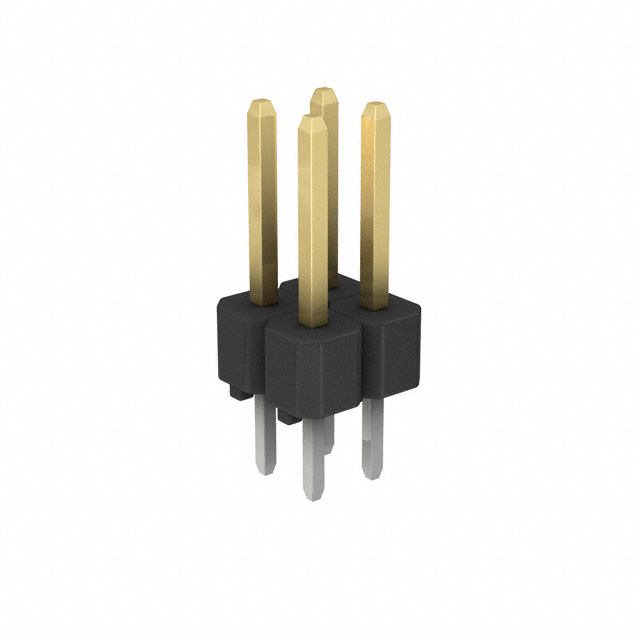

CONN HEADER VERT 4POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Voltage Rating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Material	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Style	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Insulation Height	Insulation Height	Shrouding	Connector Type	Termination	Current Rating (Amps)	Material Flammability Rating	Insulation Color
Hirose Electric Co Ltd A1-4PA-2.54DSA(71)	78.7 µin	2 µm	200 V	Tin	6 mm	0.236 in	4	-55 C	85 °C	0.118 in	3 mm	All	Polybutylene Terephthalate (PBT)	Push-Pull	0.1 in	2.54 mm	0.1 "	2.54 mm	Male Pin	Through Hole	Gold	11.54 mm	0.454 "	Board to Board Cable	2	8 µin	0.203 µm	Square	Brass	0.1 in	2.54 mm	Unshrouded	Header	Solder	3 A	UL94 V-0	Black
